DP-LPS-5

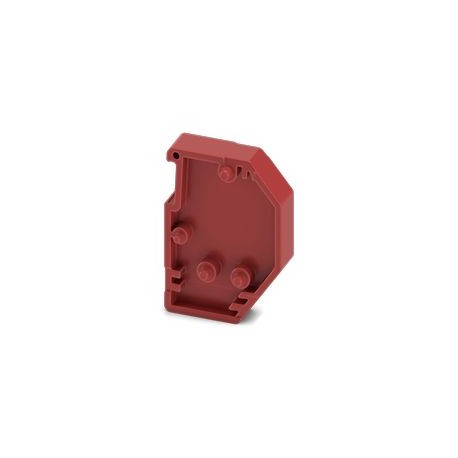

DP-LPS-5 3270524 PHOENIX CONTACT Spacer partition, length: 18.5 mm, width: 5.2 mm, height: 24.4 mm, number o..
$0.00USD
4532 in stock
Key Specifications
Color:red
Depth:24.4 mm
Width:5.2 mm
Height:18.5 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Color | red |
| Depth | 24.4 mm |
| Width | 5.2 mm |
| Height | 18.5 mm |
| Material | PA |
| Product type | Partition plate |
| Number of positions | 1 |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C () |
| Ambient temperature (operation) | -60 °C ... 105 °C (max. short-term operating temperature RTI Elec.) |
| Flammability rating according to UL 94 | V0 |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
| Static insulating material application in cold | -60 °C |
| Relative insulation material temperature index (Elec., UL 746 B) | 125 °C |
Product Description
Spacer plate, depth: 24.4 mm, width: 5.2 mm, height: 18.5 mm, number of positions: 1, color: red
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
