DOCAG332/030

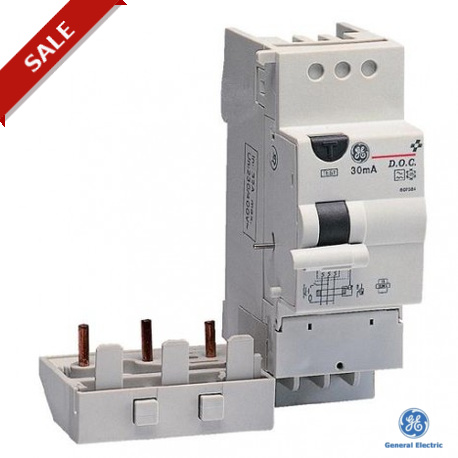

DOCAi332/030 607608 GENERAL ELECTRIC DIFF-O-CLICK Residual current devices Series Ai 3P 2M 32A 30mA
$0.00USD
3287 in stock
Key Specifications
Type:Type Ai
Poles:3P
Range:Diff-o-Click
Serie:Series Ai
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Type Ai |
| Poles | 3P |
| Range | Diff-o-Click |
| Serie | Series Ai |
| Series | Add-on residential current devices |
| Approvals | IMQ, KEMA, CEBEC, CE |
| Frequency | 50 - 60 Hz |
| Rated current In | 32 A |
| Residual current | 30 mA |
| Standard packing | 1 |
| Number of modules | 2 |
| Nominal current Un | 400 Vac |
| Ambient temperature | -25°C / 40°C |
| ETIM 5.0 (DIMENSIONS) | EC000003 |
| ETIM 6.0 (DIMENSIONS) | EC000003 |
| Minimum servicevoltage | 180 V |
| Electrical service life | 20000/10000 |
| Weight (SPECIFICATIONS) | 0.32 kg |
| Nuisance tripping resistance | 3000 A 8/20 µs-200 A 0.5 µs-100 kHz |
| Differential capacity EP30/EP60/EP100 | 6000/10000 A |
| Short circuit capacity EP30/EP60/EP100 | 6000/10000 A |
| Terminal capacity flexible/rigid cable | 25-35 mm² |
| Tropicalisation according to IEC 60068-2-28/2-30 | 95%RV at 55°C |
Product Description
DOCAG332/030
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
