DOC2125/030

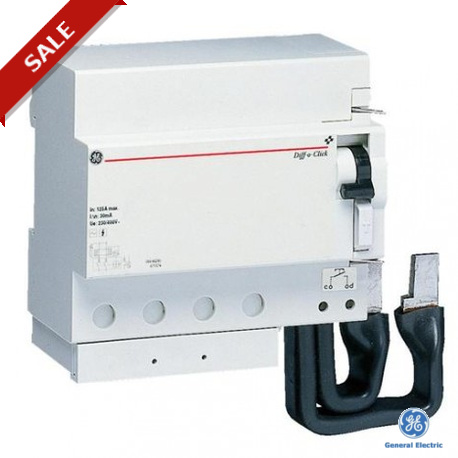

DOC2125/030 671574 GENERAL ELECTRIC DIFF-O-CLICK Residual current devices HTI Series AC 2P 125A 30mA
$0.00USD
4635 in stock
Key Specifications
Type:Type AC
Poles:2P
Range:Diff-o-Click
Serie:Series AC
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Type AC |
| Poles | 2P |
| Range | Diff-o-Click |
| Serie | Series AC |
| Series | Add-on residential current devices |
| Rated current In | 125 A |
| Residual current | 30 mA |
| Standard packing | 1 |
| Number of modules | 6 |
| Nominal current Un | 230-400 Vac |
| Ambient temperature | -5 / 55°C |
| ETIM 5.0 (DIMENSIONS) | EC000003 |
| ETIM 6.0 (DIMENSIONS) | EC000003 |
| Minimum servicevoltage | 190 V |
| Short circuit capacity | Icu = 10000 A |
| Electrical service life | 20000/10000 |
| Weight (SPECIFICATIONS) | 0.712 kg |
| Nuisance tripping resistance | 250 A 8/20µs - 200 A 0.5 µs - 100 kHz |
| Terminal capacity flexible/rigid cable | 70 mm² |
| Differential making and breaking capacity | I(Δ)m = 7500 A |
| Tropicalisation according to IEC 60068-2-28/2-30 | 95%RV at 55°C |
