DME/00-1H

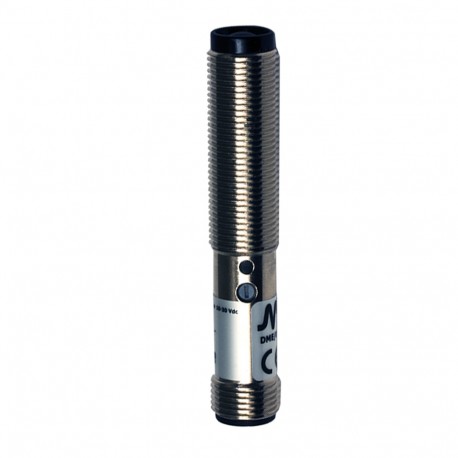

DME/00-1H MICRO DETECTORS Photoelectric sensor 4 m Emitter with adjustment, without check plug M12
$0.00USD
4326 in stock
Key Specifications
Weight:28g
Emission:Infrared (880nm)
Approvals:CE, Ex, C UL US
Dimensions:M12x1/L=65,5mm
Supplier Information
MICRO DETECTORS
Products: 33669
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Weight | 28g |
| Emission | Infrared (880nm) |
| Approvals | CE, Ex, C UL US |
| Dimensions | M12x1/L=65,5mm |
| Connections | M12 plug cable exit |
| Load current | ≤100mA |
| LED indicators | Yellow |
| Optic position | Axial |
| Leakage current | ≤10μA |
| Repeat Accuracy | 5% |
| Emitter/Receiver | Emitter |
| Housing Material | Nickel-plated brass |
| EMC compatibility | EN 60947-5-2 |
| Operating Voltage | 10…30Vdc |
| Function Principle | Through-beam |
| Max ripple content | ≤ 10% |
| Output voltage drop | ≤2V IL =100 mA |
| Thermal drift of Sr | ≤10% Sr |
| Active Head Material | PMMA |
| Degree of protection | IP67 |
| Supplied Accessories | Metallic nut (x2) |
| Operating temperature | - 25°C…+ 70° C |
| Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 |
| No-Load supply current | ≤30mA |
| Nominal sensing distance | 4.000mm |
| Short-circuit protection | Yes |
| Reverse Polarity Protection | Yes |
| Interference to external light | 3.000lux (incandescent lamp), 10.000lux (sunlight) |
| Time delay before availability | ≤150ms |
| Impulsive Overvoltage Protection | Yes |
Product Description
DME/00-1H Photoelectric sensor 4 m Emitt. with adj.without check conn.M12
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
