DMA63NC10/030GE

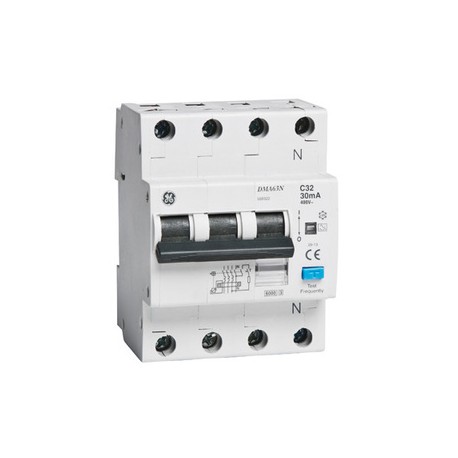

DMA63NC10/030GE 783517 DMA63NC10/030 GENERAL ELECTRIC RCBO Residual current circuit breaker with overcurrent..
$0.00USD
4567 in stock
Key Specifications
Un:400 Vac
Type:Type A
AC/DC:AC
Poles:3P+N
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Un | 400 Vac |
| Type | Type A |
| AC/DC | AC |
| Poles | 3P+N |
| Range | DMA63N |
| Series | Residual current circuit breaker with overcurrent protection |
| Weight | 0.480 kg |
| Category | People protection |
| ETIM 5.0 | EC000003 - Residual current circuit breaker (RCCB) |
| ETIM 6.0 | EC000003 - Residual current circuit breaker (RCCB) |
| ETIM 7.0 | EC000905 - Earth leakage circuit breaker |
| Approvals | CEIMQ |
| Frequency | 50/60 Hz |
| Approval/norm | EN/IEC 61009-1 |
| Shock voltage | 6 |
| Operating time | Instantaneous |
| Rated current In | 10 A |
| Residual current | 30 mA |
| Standard packing | 1 |
| Number of modules | 4 |
| Protection Degree | IP20 |
| Selectivity class | 3 |
| Dielectric strength | 2500 V |
| Storage temperature | -25°C / +40°C |
| Operating temperature | -5 / +60°C |
| Minimum servicevoltage | 195 V |
| Switching off capacity | C (5-10 In) |
| Electrical service life | 10000 |
| Nuisance tripping resistance | 250 A 8/20µs - 200 A 0.5 µs - 100 kHz |
| Terminal capacity flexible/rigid cable | Top terminal: 1-25 mm²/Bottom terminal: 1-35 mm² |
| Differential making and breaking capacity | I(Δ)m = 3000 A |
| Tropicalisation according to IEC 60068-2-28/2-30 | 95%RV at 55°C |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
