DLK 4-PE KAN

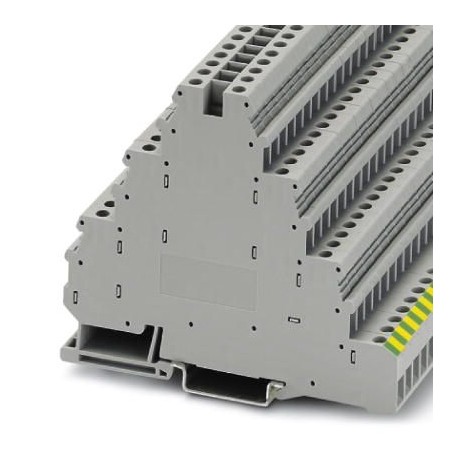

DLK 4-PE KAN 3026764 PHOENIX CONTACT Installation ground terminal block
$0.00USD
3394 in stock
Key Specifications
GTIN:4017918472375
Note:Made to Order (non-returnable)
Orderkey:3026764
Packing unit:200 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918472375 |
| Note | Made to Order (non-returnable) |
| Orderkey | 3026764 |
| Packing unit | 200 pc |
| Width (General) | 6.2 mm |
| Length (General) | 103.5 mm |
| Country of origin | PL (Poland) |
| (Connection data) | IEC 60947-7-1/IEC 60947-7-2 |
| Custom tariff number | 85369010 |
| Minimum order quantity | 200 pc |
| Height NS 35/15 (General) | 94 mm |
| Screw thread (Dimensions) | M3 |
| Height NS 35/7,5 (General) | 86.5 mm |
| Color (Key Commercial Data) | gray |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Stripping length (Dimensions) | 8 mm |
| Connection method (Dimensions) | Screw connection |
| Tightening torque max (Dimensions) | 0.6 Nm |
| Tightening torque, min (Dimensions) | 0.5 Nm |
| Weight per Piece (excluding packing) | 41.970 g |
| Open side panel (Key Commercial Data) | No |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Internal cylindrical gage (Dimensions) | A3 |
| Number of levels (Key Commercial Data) | 4 |
| REACh SVHC (Standards and Regulations) | Lead 7439-92-1 |
| Degree of pollution (Key Commercial Data) | 3 |
| Insulating material (Key Commercial Data) | PA |
| Rated surge voltage (Key Commercial Data) | 6 kV |
| Overvoltage category (Key Commercial Data) | III |
| Nominal cross section (Key Commercial Data) | 4 mm² |
| Number of connections (Key Commercial Data) | 7 |
| Conductor cross section AWG max. (Dimensions) | 10 |
| Conductor cross section AWG min. (Dimensions) | 24 |
| Conductor cross section solid max. (Dimensions) | 6 mm² |
| Conductor cross section solid min. (Dimensions) | 0.2 mm² |
| Insulating material group (Key Commercial Data) | I |
| Conductor cross section flexible max. (Dimensions) | 4 mm² |
| Conductor cross section flexible min. (Dimensions) | 0.2 mm² |
| Connection in acc. with standard (Connection data) | CUL |
| Connection in acc. with standard (Key Commercial Data) | IEC 60947-7-1/IEC 60947-7-2 |
| Flammability rating according to UL 94 (Connection data) | V0 |
| Flammability rating according to UL 94 (Key Commercial Data) | V0 |
| Conductor cross section flexible, with ferrule with plastic sleeve max. (Dimensions) | 4 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. (Dimensions) | 0.25 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. (Dimensions) | 4 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve min. (Dimensions) | 0.25 mm² |
Product Description
Ground terminal block for distribution, Left PE connection, connection type: Screw connection, Sizing cross-section: 4 mm², cross-section: 0.2 mm² - 6 mm², mounting class: NS 35/7.5, NS 35/15, color:
