DKA30A-05

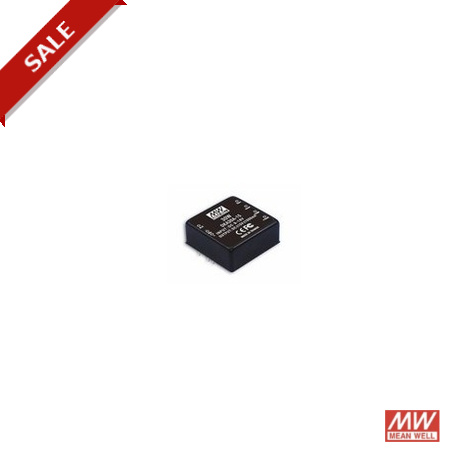

DKA30A-05 MEANWELL DC-DC Converter for PCB mount, Input 9-18VDC, Output ±5VDC / 2.5A, DIP Through hole packa..
$26.66USD
417 in stock
Key Specifications
Name (Details):DKA30A-05
Format (Details):For Printed Circuit
Series (Details):DKA30
Output 1 (Details):-5
Supplier Information
MEANWELL
Products: 6448
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Name (Details) | DKA30A-05 |
| Format (Details) | For Printed Circuit |
| Series (Details) | DKA30 |
| Output 1 (Details) | -5 |
| Output 2 (Details) | +5 |
| Approvals (Details) | EC, EAC |
| Power (W) (Details) | 25,00 |
| Subformato (Details) | DIP |
| Width (mm) (Details) | 50.8 |
| Height (mm) (Details) | Twenty one |
| Input range (Details) | 2:1 |
| Applications (Details) | Industrial, Instrumentation, Telecommunications |
| DC input Max (Details) | 18,00 |
| DC input Min (Details) | 9,00 |
| Manufacturer (Details) | MEAN WELL |
| Product type (Details) | Dc/DC converters |
| Isolation (V) (Details) | 1.000,00 |
| Peak Power (W) (Details) | Twenty five |
| Input connector (Details) | Pin |
| Long/Background (Details) | 50.8 |
| Long Description (Details) | Dc/DC converter to the printed circuit board, insulation 1000Vcc. (3000Vcc. optional), regulated.Wide input range 2 to 1 (4-to-1 optional).FormatDIPfor printed circuit boards.Input range9-18Vcc.Outputs:-5vdc:Without the need of minimum load.Maximum output current -2,5 A.+5vdc:Without the need of minimum load.Maximum output current2,5 A.Power:25W.Isolation input-output1000Vcc.Efficiency typical:80%.Noise and ripple100mVp-p.Remote Control on and off.No requirements of minimum load.Protections short circuit, overload, over output voltage and under-voltage input.Working temperature: from-40up+85 ° Cof ambient temperature. Consult the technical data sheet to see the curves of drift.Dimensions (Length x Width x Height) [mm]:50.8 x 50.8 x 21.2 years of warranty.Manufacturer: MEAN WELL.The new series DKA30 are converters 25-30W isolated in format DIP input 2:1 (4:1 optional), without additional components and have a wide range of temperature operation, and isolation between input and output of 1000Vcc.(3000Vcc. optional). Are protected against overloads, short circuits, under-voltage input and output voltage.CE certificate and EAC. |
| Output connector (Details) | Pin |
| Warranty (Years) (Details) | 2,00 |
| Country of Origin (Details) | Taiwan |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Dc/DC converter to the printed circuit board, insulation 1000Vcc. (3000Vcc. optional), regulated.
