DILMT50(RDC24)

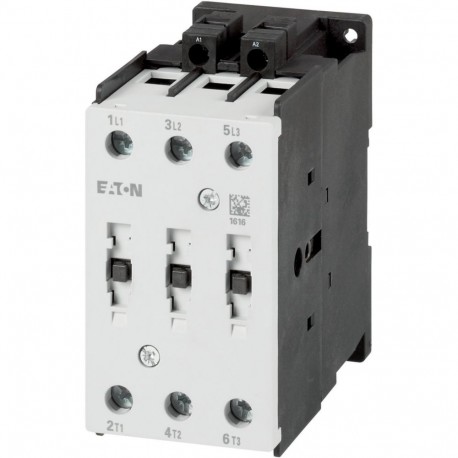

DILMT50(RDC24) 190984 Y7-190984 EATON ELECTRIC Power Contactor close Connection screw 3 pole 50 A AC-3 RDC24
$0.00USD
4123 in stock
Key Specifications
Feature Name:Feature Value
Depth (EF000049):108.1 mm
Width (EF000008):55 mm
Height (EF000040):103.6 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Feature Name | Feature Value |
| Depth (EF000049) | 108.1 mm |
| Width (EF000008) | 55 mm |
| Height (EF000040) | 103.6 mm |
| Modular version (EF001126) | No |
| Operating voltage AC 50 Hz (EF008206) | 24 V |
| Operating voltage AC 60 Hz (EF008207) | 24 V |
| Rated operation power NEMA (EF011960) | 0 kW |
| Voltage type for actuating (EF008242) | DC |
| Rated control supply voltage DC (EF003980) | 24 V |
| Rated operation power at AC-3, 400 V (EF001364) | 22 kW |
| Rated operation power at AC-4, 400 V (EF008496) | 0 kW |
| Rated control supply voltage AC 50 Hz (EF003978) | 0 V |
| Rated control supply voltage AC 60 Hz (EF003979) | 0 V |
| Rated operation current Ie at AC-1, 400 V (EF001393) | 70 A |
| Rated operation current Ie at AC-3, 400 V (EF001392) | 50 A |
| Rated operation current Ie at AC-4, 400 V (EF008495) | 0 A |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Number of normally open contacts as main contact (EF001374) | 3 |
| Number of normally closed contacts as main contact (EF001375) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
Product Description
DILMT50(RDC24)
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
