In Stock Hot Product
DILER-31(600V60HZ)

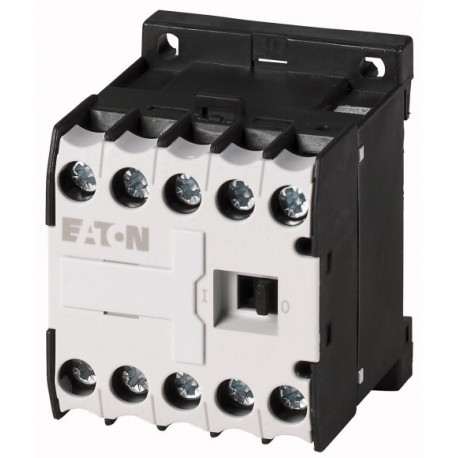

DILER-31(600V60HZ) 010093 XTRM10A31K6 EATON ELECTRIC AC contactor relay 3 NO / 1 NC
$0.00USD
4353 in stock
Key Specifications
Feature Name:Feature Value
Depth (EF000049):51 mm
Width (EF000008):45 mm
Height (EF000040):58 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Feature Name | Feature Value |
| Depth (EF000049) | 51 mm |
| Width (EF000008) | 45 mm |
| Height (EF000040) | 58 mm |
| Interface (EF000594) | No |
| Mounting method (EF000003) | DIN-rail/screw |
| With LED indication (EF005950) | No |
| Voltage type for actuating (EF008242) | AC |
| Suitable for manual operation (EF002978) | No |
| Rated control supply voltage DC (EF003980) | 0 V |
| Connection type auxiliary circuit (EF006820) | Screw connection |
| Rated operation current Ie, 400 V (EF001378) | 3 A |
| Rated control supply voltage AC 50 Hz (EF003978) | 0 V |
| Rated control supply voltage AC 60 Hz (EF003979) | 600 V |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 3 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 1 |
| Number of auxiliary contacts as normally open contact, leading (EF007282) | 0 |
| Number of auxiliary contacts as normally closed contact, delayed switching (EF007281) | 0 |
Product Description
Mini-Contactor Auxiliary; Connection screw; 3 NO + 1 NC; 600 V 60 Hz
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
