DGR/DN-3D

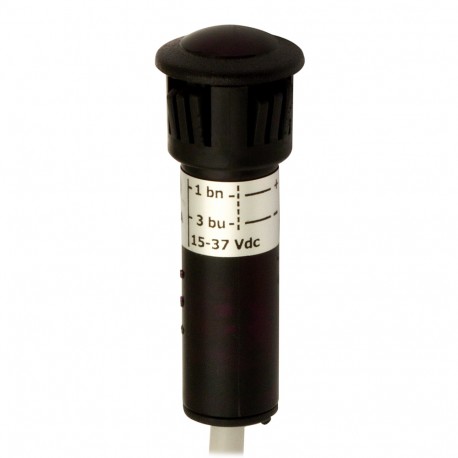

DGR/DN-3D MICRO DETECTORS Photoelectric sensor Receiver NPN-DOn D10 mm clip cable 7 m
$0.00USD
4430 in stock
Key Specifications
Weight:210g
Approvals:CE
Dimensions:M10x1/L=41mm
Connections:Cable 7m PVC
Supplier Information
MICRO DETECTORS
Products: 33669
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Weight | 210g |
| Approvals | CE |
| Dimensions | M10x1/L=41mm |
| Connections | Cable 7m PVC |
| Output type | NPN |
| Load current | ≤30mA |
| LED indicators | Supply |
| Optic position | Axial |
| Leakage current | ≤10µA |
| Output Function | DO |
| Emitter/Receiver | Receiver |
| Housing Material | PC |
| EMC compatibility | EN 60947-5-3 |
| Operating Voltage | 15…37Vdc |
| Function Principle | Through-beam |
| Max ripple content | ≤ 10% |
| Output voltage drop | ≤2V IL=30mA |
| Switching frequency | 40Hz |
| Thermal drift of Sr | ≤10%Sr |
| Active Head Material | PMMA |
| Degree of protection | IP67 |
| Operating temperature | - 25°C…+ 70° C (without freeze) |
| Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 |
| No-Load supply current | ≤10mA |
| Sensitivity adjustment | No |
| Nominal sensing distance | 2m (EG=4) |
| Short-circuit protection | Yes |
| Reverse Polarity Protection | Yes |
| Interference to external light | 20.000lux |
| Time delay before availability | ≤ 100ms |
| Impulsive Overvoltage Protection | Yes |
Product Description
DGR/DN-3D Photoelectric sensor Receiver NPN Don D10 mm clip cable 7 m
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
