In Stock Hot Product
DGCS1808

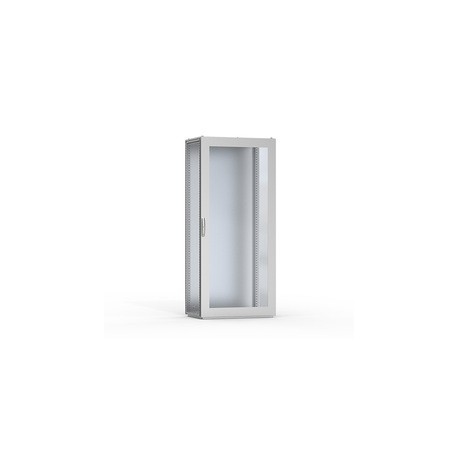

DGCS1808 ELDON Glazed door, 1800x800 DGCS1808
$0.00USD
4315 in stock
Key Specifications
Finish: (Technical data):240s pre-grained stainless steel (0.5 micron average).
Material: (Technical data):Frame: 2 mm AISI 304 stainless steel plate / AISI 316L (on request). Viewing area: clear safety glass, 4 mm glass thickness.
Protection: (Technical data):IP 55 TYPE 12, 13 IK 10.
Description: (Technical data):Standard door fitted with clear safety glass to view the inside of the enclosure. Equipped with double-bit 3 mm lock system and door frame. Allows all options of the locking programme.
Supplier Information
ELDON
Products: 4827
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Finish: (Technical data) | 240s pre-grained stainless steel (0.5 micron average). |
| Material: (Technical data) | Frame: 2 mm AISI 304 stainless steel plate / AISI 316L (on request). Viewing area: clear safety glass, 4 mm glass thickness. |
| Protection: (Technical data) | IP 55 TYPE 12, 13 IK 10. |
| Description: (Technical data) | Standard door fitted with clear safety glass to view the inside of the enclosure. Equipped with double-bit 3 mm lock system and door frame. Allows all options of the locking programme. |
| Pack quantity: (Technical data) | 1 piece. |
| Mounting requirements: (Technical data) | Use hinge kit DMKS if not for replacement of standard door. |
Product Description
Standard door with transparent safe clear glass window to view the equipment inside. Fitted with safety glass, 3 DIN lock and door frame. Provides a nice look to an enclosure. All locking options poss
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Description:
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
