DFMC 0,5/ 2-ST-2,54

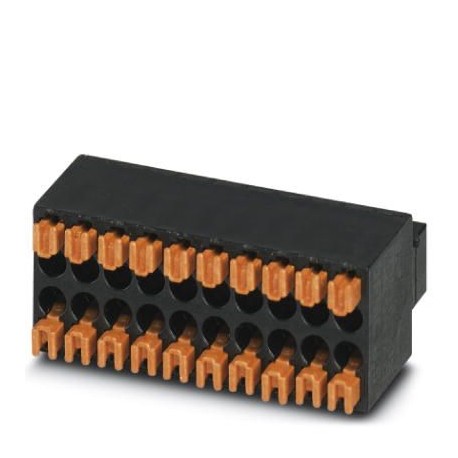

DFMC 0,5/ 2-ST-2,54 1844578 PHOENIX CONTACT Printed-circuit board connector
$0.00USD
3871 in stock
Key Specifications
GTIN:4046356964241
Orderkey:1844578
Packing unit:100 pc
Country of origin:DE (Germany)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356964241 |
| Orderkey | 1844578 |
| Packing unit | 100 pc |
| Country of origin | DE (Germany) |
| Custom tariff number | 85366990 |
| (Ambient conditions) | |
| Minimum order quantity | 100 pc |
| Voltage (Pull-out test) | 32 V |
| Note (Connection capacity) | WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 |
| Pitch (Key Commercial Data) | 2.54 mm |
| Diagram (Temperature cycles) | |
| Locking (Key Commercial Data) | without |
| Rated current (Item properties) | 6 A |
| (Termination and connection method) | 0.5 mm² / flexible / > 20 N |
| Plug-in system (Key Commercial Data) | MICRO COMBICON - DFMC 0,5 |
| Weight per Piece (excluding packing) | 1.060 g |
| Type of contact (Key Commercial Data) | Female connector |
| Contact material (Connection capacity) | Cu alloy |
| Number of levels (Key Commercial Data) | 2 |
| Connection method (Key Commercial Data) | Push-in spring connection |
| Range of articles (Key Commercial Data) | DFMC 0,5/..-ST |
| Stripping length (Electrical parameters) | 7 mm |
| Insulating material group (Pull-out test) | IIIa |
| Number of positions (Key Commercial Data) | 2 |
| Rated surge voltage (II/2) (Pull-out test) | 2.5 kV |
| Pitch (Material data – actuating element) | 2.54 mm |
| Rated surge voltage (III/2) (Pull-out test) | 2.5 kV |
| Rated surge voltage (III/3) (Pull-out test) | 2.5 kV |
| Insulating material (Material data - contact) | LCP |
| Insulating material (Material data - housing) | LCP |
| Rated surge voltage (III/2) (Item properties) | 2.5 kV |
| Surface characteristics (Connection capacity) | Selective coating |
| (Current carrying capacity / derating curves) | No hazardous substances above threshold values |
| Type of packaging (Dimensions for the product) | packed in cardboard |
| Brief article description (Key Commercial Data) | PCB connector |
| Pieces per package (Dimensions for the product) | 100 |
| Rated insulation voltage (II/2) (Pull-out test) | 160 V |
| Rated insulation voltage (III/2) (Pull-out test) | 160 V |
| Rated insulation voltage (III/3) (Pull-out test) | 32 V |
| Dimension a (Material data – actuating element) | 2.54 mm |
| Width [ w ] (Material data – actuating element) | 5.58 mm |
| Height [ h ] (Material data – actuating element) | 10.5 mm |
| Length [ l ] (Material data – actuating element) | 15.85 mm |
| Rated insulation voltage (III/2) (Item properties) | 160 V |
| Insulating material group (Material data - contact) | IIIa |
| CTI according to IEC 60112 (Material data - contact) | 175 |
| CTI according to IEC 60112 (Material data - housing) | 175 |
| Conductor cross section solid (Electrical parameters) | 0.14 mm² ... 0.5 mm² |
| Specification (Air clearances and creepage distances) | IEC 60999-1:1999-11 |
| Ambient temperature (assembly) (Packaging information) | -5 °C ... 100 °C |
| Ambient temperature (operation) (Packaging information) | -40 °C |
| Denomination packing units (Dimensions for the product) | Pcs. |
| China RoHS (Current carrying capacity / derating curves) | Environmentally friendly use period: unlimited = EFUP-e |
| Conductor cross section flexible (Electrical parameters) | 0.14 mm² ... 0.5 mm² |
| Temperature cycles (Air clearances and creepage distances) | 192 |
| Conductor cross section AWG / kcmil (Electrical parameters) | 26 ... 20 |
| Metal surface contact area (top layer) (Connection capacity) | Gold (0.25 Au) |
| Test – repeated connection and release (Ambient conditions) | IEC 60999-1:1999-11 |
| Metal surface terminal point (top layer) (Connection capacity) | Tin (5 - 7 µm Sn) |
| Ambient temperature (storage/transport) (Packaging information) | -40 °C ... 70 °C |
| Metal surface contact area (middle layer) (Connection capacity) | Nickel (2 - 3 µm Ni) |
| Flammability rating according to UL 94 (Material data - contact) | V0 |
| Flammability rating according to UL 94 (Material data - housing) | V0 |
| Height (without solder pin) (Material data – actuating element) | 10.5 mm |
| Metal surface terminal point (middle layer) (Connection capacity) | Nickel (1 - 3 µm Ni) |
| Test current (maximum cross section) (Air clearances and creepage distances) | 6 A AC |
| Test current (minimum cross section) (Air clearances and creepage distances) | 4 A AC |
| Conductor cross section / conductor type / tensile force (Termination and connection method) | 0.14 mm² / solid / > 10 N |
| Conductor cross section, flexible, with ferrule, with plastic sleeve (Electrical parameters) | 0.14 mm² ... 0.25 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve (Electrical parameters) | 0.25 mm² ... 0.34 mm² |
Product Description
Connector for printed circuit board, nominal section: 0.5 mm², color: black, nominal current: 6 A, nominal voltage (III/2): 160 V, contact surface: Gold, contact type: Female, number of potentials: 4,
