DFLK-D62 SUBH/S

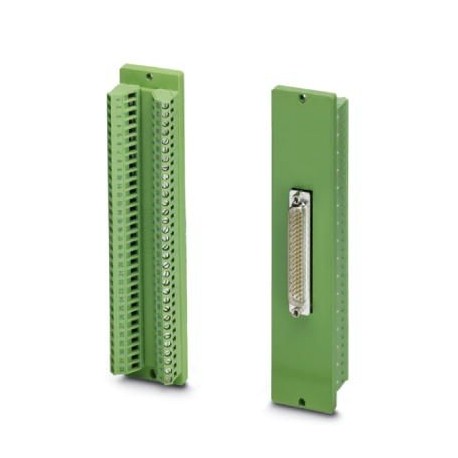

DFLK-D62 SUBH/S 2300863 PHOENIX CONTACT Interface module
$0.00USD
3045 in stock
Key Specifications
GTIN:4017918903213
Note:Made to Order (non-returnable)
Orderkey:2300863
Catalog page:Page 311 (IF-2011)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918903213 |
| Note | Made to Order (non-returnable) |
| Orderkey | 2300863 |
| Catalog page | Page 311 (IF-2011) |
| Packing unit | 10 pc |
| Country of origin | DE (Germany) |
| Custom tariff number | 85369010 |
| (Ambient conditions) | 50 V DC |
| Screw thread (General) | M3 |
| Connection name (General) | Field level |
| Stripping length (General) | 8 mm |
| Connection method (General) | Screw connection |
| Width (Key Commercial Data) | 40.4 mm |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Height (Key Commercial Data) | 180 mm |
| Designation (Supported controller) | Air clearances and creepage distances |
| Status display (Ambient conditions) | No |
| Weight per Piece (excluding packing) | 189.230 g |
| Conductor cross section AWG (General) | 24 ... 12 |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Mounting position (Ambient conditions) | any |
| Conductor cross section solid (General) | 0.2 mm² ... 4 mm² |
| Number of positions (Ambient conditions) | 62 |
| Assembly instructions (Ambient conditions) | In rows with zero spacing |
| Conductor cross section flexible (General) | 0.2 mm² ... 2.5 mm² |
| Connection in acc. with standard (General) | IEC / EN |
| Degree of pollution (Supported controller) | 2 |
| Rated surge voltage (Supported controller) | basic insulation |
| Overvoltage category (Supported controller) | II |
| Ambient temperature (operation) (Dimensions) | -20 °C ... 50 °C |
| Standards/regulations (Supported controller) | DIN EN 50178 |
| Controller (Connection data for connection 2) | Teleperm XP |
| Max. perm. operating voltage (Ambient conditions) | 25 V AC |
| Connection name (Connection data for connection 1) | Controller level |
| Ambient temperature (storage/transport) (Dimensions) | -20 °C ... 70 °C |
| Connection method (Connection data for connection 1) | D-SUB pin strip |
| Max. perm. current (per branch) (Ambient conditions) | 0.5 A |
| Number of positions (Connection data for connection 1) | 62 |
| Number of connections (Connection data for connection 1) | 1 |
Product Description
VARIOFACE execution module, for direct coupling of individual signalling cables up to 2.5 mm², with subminiature plug strip D and screw connection, number of poles 62
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
