DFLK 16

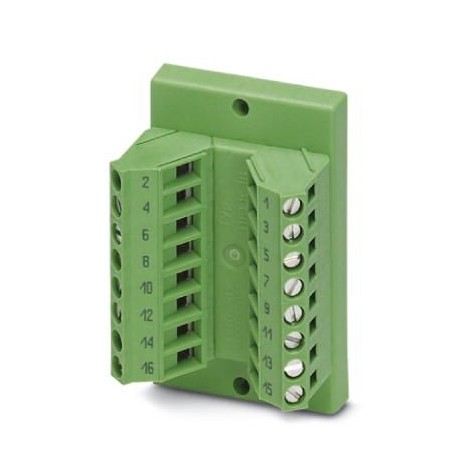

DFLK 16 2280239 PHOENIX CONTACT Interface module
$0.00USD
4751 in stock
Key Specifications
GTIN:4017918054342
Note:Made to Order (non-returnable)
Orderkey:2280239
Catalog page:Page 582 (C-7-2015)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918054342 |
| Note | Made to Order (non-returnable) |
| Orderkey | 2280239 |
| Catalog page | Page 582 (C-7-2015) |
| Packing unit | 5 pc |
| Country of origin | DE (Germany) |
| Custom tariff number | 85369010 |
| (Ambient conditions) | 60 V DC |
| Screw thread (General) | M3 |
| Connection name (General) | Field level |
| Stripping length (General) | 8 mm |
| Connection method (General) | Screw connection |
| Depth (Key Commercial Data) | 49 mm |
| Width (Key Commercial Data) | 39 mm |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Height (Key Commercial Data) | 58.4 mm |
| (Connection data for connection 2) | IEC 60664 |
| Status display (Ambient conditions) | No |
| Weight per Piece (excluding packing) | 0.580 g |
| Conductor cross section AWG (General) | 24 ... 12 |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Mounting position (Ambient conditions) | any |
| Conductor cross section solid (General) | 0.2 mm² ... 4 mm² |
| Number of positions (Ambient conditions) | 16 |
| Pitch (Connection data for connection 1) | 2.54 mm |
| Degree of protection (Ambient conditions) | IP20 |
| Conductor cross section flexible (General) | 0.2 mm² ... 2.5 mm² |
| Connection in acc. with standard (General) | IEC / EN |
| Ambient temperature (operation) (Dimensions) | -20 °C ... 50 °C |
| Insulation (Connection data for connection 2) | Functional insulation |
| Designation (Connection data for connection 2) | Air clearances and creepage distances |
| Max. perm. operating voltage (Ambient conditions) | < 50 V AC |
| Connection name (Connection data for connection 1) | Controller level |
| Ambient temperature (storage/transport) (Dimensions) | -20 °C ... 70 °C |
| Connection method (Connection data for connection 1) | IDC/FLK pin strip |
| Max. perm. current (per branch) (Ambient conditions) | 1 A |
| Degree of pollution (Connection data for connection 2) | 2 |
| Number of positions (Connection data for connection 1) | 16 |
| Rated surge voltage (Connection data for connection 2) | 0.6 kV |
| Overvoltage category (Connection data for connection 2) | II |
| Number of connections (Connection data for connection 1) | 1 |
| Standards/regulations (Connection data for connection 2) | DIN EN 50178 |
| Rated insulation voltage (Connection data for connection 2) | 63 V |
| Max. permissible current (all branches) (Ambient conditions) | 16 A (TA= 50°C) |
Product Description
The VARIOFACE feed-through module makes a 1:1 connection between screw connection terminals and an IDC/FLK plug (2.54 mm, no. 16).
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
