DFK-PC 16/ 2-STF-SH-10,16

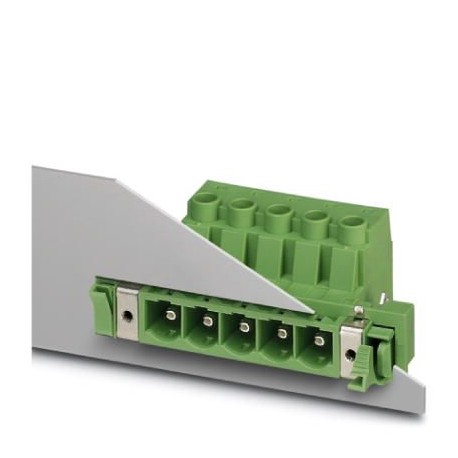

DFK-PC 16/ 2-STF-SH-10,16 1703616 PHOENIX CONTACT Feed-through plug
$8.53USD
1215 in stock
Key Specifications
GTIN:4017918994457
Note:Made to Order (non-returnable)
Orderkey:1703616
Catalog page:Page 583 (C-1-2013)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918994457 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1703616 |
| Catalog page | Page 583 (C-1-2013) |
| Packing unit | 10 pc |
| Country of origin | PL (Poland) |
| Custom tariff number | 85366990 |
| Minimum order quantity | 10 pc |
| Pitch (Key Commercial Data) | 10.16 mm |
| Locking (Key Commercial Data) | Screw flange |
| Torque (Electrical parameters) | 1.7 Nm ... 1.8 Nm |
| Pitch (Material data - housing) | 10.16 mm |
| Rated current (Item properties) | 76 A |
| Voltage (Packaging information) | 1000 V |
| Screw thread (Key Commercial Data) | M4 |
| Plug-in system (Key Commercial Data) | POWER COMBICON 16 |
| Weight per Piece (excluding packing) | 28.300 g |
| Dimension a (Material data - housing) | 10.16 mm |
| Specification (Packaging information) | IEC 60664-1:2007-04 |
| Type of contact (Key Commercial Data) | Male connector |
| Width [ w ] (Material data - housing) | 55.68 mm |
| Contact material (Connection capacity) | Cu alloy |
| Height [ h ] (Material data - housing) | 30.55 mm |
| Length [ l ] (Material data - housing) | 44.1 mm |
| Number of levels (Key Commercial Data) | 1 |
| Connection method (Key Commercial Data) | Screw connection with tension sleeve |
| Range of articles (Key Commercial Data) | DFK-PC 16/..-STF-SH |
| Solder pin [P] (Material data - housing) | 4.1 mm |
| Stripping length (Electrical parameters) | 12 mm |
| Number of positions (Key Commercial Data) | 2 |
| Number of potentials (Key Commercial Data) | 2 |
| Drive form screw head (Key Commercial Data) | Slotted |
| Number of connections (Key Commercial Data) | 2 |
| Dimensional drawing (Material data - housing) | |
| Insulating material (Material data - contact) | PA |
| Rated surge voltage (III/2) (Item properties) | 8 kV |
| Surface characteristics (Connection capacity) | Electroplated silver |
| (Current carrying capacity / derating curves) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Type of packaging (Dimensions for the product) | packed in cardboard |
| Brief article description (Key Commercial Data) | Feed-through plug |
| Diagram (Air clearances and creepage distances) | |
| Pieces per package (Dimensions for the product) | 10 |
| Insulating material group (Packaging information) | I |
| Rated insulation voltage (III/2) (Item properties) | 1000 V |
| Rated surge voltage (II/2) (Packaging information) | 6 kV |
| Insulating material group (Material data - contact) | I |
| Rated surge voltage (III/2) (Packaging information) | 8 kV |
| Rated surge voltage (III/3) (Packaging information) | 8 kV |
| CTI according to IEC 60112 (Material data - contact) | 600 |
| Conductor cross section solid (Electrical parameters) | 0.75 mm² ... 16 mm² |
| Height (without solder pin) (Material data - housing) | 27.8 mm |
| Denomination packing units (Dimensions for the product) | Pcs. |
| Rated insulation voltage (II/2) (Packaging information) | 1000 V |
| China RoHS (Current carrying capacity / derating curves) | Environmentally Friendly Use Period = 50 |
| Conductor cross section flexible (Electrical parameters) | 0.75 mm² ... 16 mm² |
| REACh SVHC (Current carrying capacity / derating curves) | Lead 7439-92-1 |
| Rated insulation voltage (III/2) (Packaging information) | 1000 V |
| Rated insulation voltage (III/3) (Packaging information) | 1000 V |
| Conductor cross section AWG / kcmil (Electrical parameters) | 18 ... 6 |
| Metal surface contact area (top layer) (Connection capacity) | Silver (4 - 8 µm Ag) |
| Metal surface terminal point (top layer) (Connection capacity) | Silver (4 - 8 µm Ag) |
| Flammability rating according to UL 94 (Material data - contact) | V0 |
| 2 conductors with same cross section, solid (Electrical parameters) | 0.75 mm² ... 6 mm² |
| 2 conductors with same cross section, flexible (Electrical parameters) | 0.75 mm² ... 6 mm² |
| Glow wire flammability index GWFI according to EN 60695-2-12 (Material data - contact) | 850 |
| Glow wire ignition temperature GWIT according to EN 60695-2-13 (Material data - contact) | 775 |
| Temperature for the ball pressure test according to EN 60695-10-2 (Material data - contact) | 125 °C |
| Conductor cross section, flexible, with ferrule, with plastic sleeve (Electrical parameters) | 0.5 mm² ... 16 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve (Electrical parameters) | 0.5 mm² ... 16 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve (Electrical parameters) | 0.5 mm² ... 4 mm² |
| 2 conductors with same cross section, stranded, with TWIN ferrules with plastic sleeve (Electrical parameters) | 0.5 mm² ... 6 mm² |
Product Description
Wall pass block, nominal section: 16 mm², color: green, nominal current: 76 A, nominal voltage (III/2): 1000 V, contact surface: silver, contact type: Male, number of potentials: 2, number of rows: 1,
