DFK-MSTBA 2,5/ 6-G-5,08

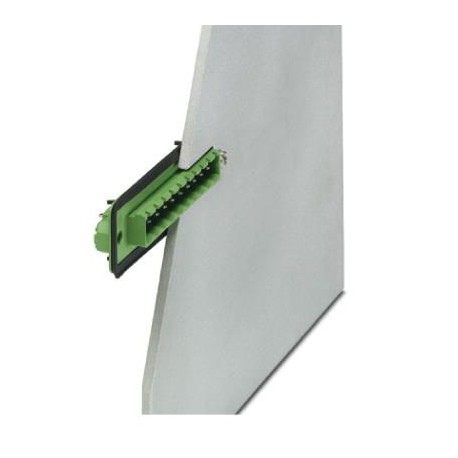

DFK-MSTBA 2,5/ 6-G-5,08 1898871 PHOENIX CONTACT Printed-circuit board connector
$0.00USD
3407 in stock
Key Specifications
GTIN:4017918186043
Orderkey:1898871
(General):CUL
Catalog page:Page 354 (C-1-2013)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918186043 |
| Orderkey | 1898871 |
| (General) | CUL |
| Catalog page | Page 354 (C-1-2013) |
| Packing unit | 50 pc |
| Country of origin | PL (Poland) |
| Color (Dimensions) | green |
| Custom tariff number | 85366930 |
| Minimum order quantity | 50 pc |
| Pitch (Key Commercial Data) | 5.08 mm |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Height (Key Commercial Data) | 19 mm |
| Length (Key Commercial Data) | 12 mm |
| Range of articles (Dimensions) | DFK-MSTBA 2,5/..-G |
| Nominal current IN (Dimensions) | 12 A |
| Insulating material (Dimensions) | PBT |
| Number of positions (Dimensions) | 6 |
| Dimension a (Key Commercial Data) | 25.4 mm |
| Maximum load current (Dimensions) | 12 A |
| Rated voltage (II/2) (Dimensions) | 400 V |
| Length [ l ] (Key Commercial Data) | 12 mm |
| Rated voltage (III/2) (Dimensions) | 320 V |
| Rated voltage (III/3) (Dimensions) | 250 V |
| Weight per Piece (excluding packing) | 4.850 g |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Insulating material group (Dimensions) | IIIa |
| Rated surge voltage (II/2) (Dimensions) | 4 kV |
| Rated surge voltage (III/2) (Dimensions) | 4 kV |
| Rated surge voltage (III/3) (Dimensions) | 4 kV |
| Connection in acc. with standard (General) | EN-VDE |
| Connection in acc. with standard (Dimensions) | EN-VDE |
| Length of the solder pin (Key Commercial Data) | 3.2 mm |
| Flammability rating according to UL 94 (General) | V0 |
| Flammability rating according to UL 94 (Dimensions) | V0 |
Product Description
Wall pass-through housing, nominal section: 2.5 mm², color: green, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Tin, contact type: Male, number of potentials: 6, number of r
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
