DFK-MSTB 2,5/ 4-GF-5,08

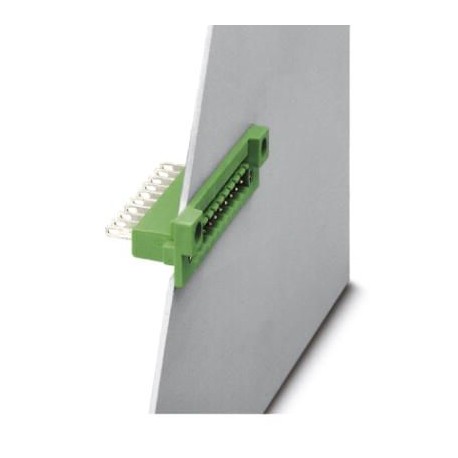

DFK-MSTB 2,5/ 4-GF-5,08 0710196 PHOENIX CONTACT Printed-circuit board connector
$0.00USD
3235 in stock
Key Specifications
GTIN:4017918005221
Orderkey:0710196
Catalog page:Page 353 (C-1-2013)
Packing unit:50 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918005221 |
| Orderkey | 0710196 |
| Catalog page | Page 353 (C-1-2013) |
| Packing unit | 50 pc |
| Country of origin | DE (Germany) |
| (Connection data) | CSA |
| Custom tariff number | 85366930 |
| Pitch (Key Commercial Data) | 5.08 mm |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Connection method (Dimensions) | Solder/Slip-on connection |
| Range of articles (Dimensions) | DFK-MSTB 2,5/..-GF |
| Nominal current IN (Dimensions) | 12 A |
| Insulating material (Dimensions) | PA |
| Number of positions (Dimensions) | 4 |
| Dimension a (Key Commercial Data) | 15.24 mm |
| Maximum load current (Dimensions) | 12 A |
| Rated voltage (II/2) (Dimensions) | 630 V |
| Width [ w ] (Key Commercial Data) | 40.64 mm |
| Height [ h ] (Key Commercial Data) | 29.5 mm |
| Length [ l ] (Key Commercial Data) | 17.5 mm |
| Nominal cross section (Dimensions) | 2.5 mm² |
| Rated voltage (III/2) (Dimensions) | 320 V |
| Rated voltage (III/3) (Dimensions) | 320 V |
| Weight per Piece (excluding packing) | 5.070 g |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Insulating material group (Dimensions) | I |
| REACh SVHC (Standards and Regulations) | Lead 7439-92-1 |
| Rated surge voltage (II/2) (Dimensions) | 4 kV |
| Rated surge voltage (III/2) (Dimensions) | 4 kV |
| Rated surge voltage (III/3) (Dimensions) | 4 kV |
| Max. current slip-on connection (General) | |
| Conductor cross section AWG max. (General) | 12 |
| Conductor cross section AWG min. (General) | 24 |
| Dimensions of slip-on connection (General) | 2,8 x 0,8 mm |
| Conductor cross section solid max. (General) | 2.5 mm² |
| Conductor cross section solid min. (General) | 0.2 mm² |
| Connection in acc. with standard (Dimensions) | EN-VDE |
| Conductor cross section flexible max. (General) | 2.5 mm² |
| Conductor cross section flexible min. (General) | 0.2 mm² |
| Connection in acc. with standard (Connection data) | EN-VDE |
| Flammability rating according to UL 94 (Dimensions) | V2 |
| Dimensions of slip-on connection (Key Commercial Data) | 2,8 x 0,8 mm |
| Flammability rating according to UL 94 (Connection data) | V2 |
Product Description
Wall pass-through housing, nominal section: 2.5 mm², color: green, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Tin, contact type: Male, number of potentials: 4, number of r
