DF-SP-H 2,5

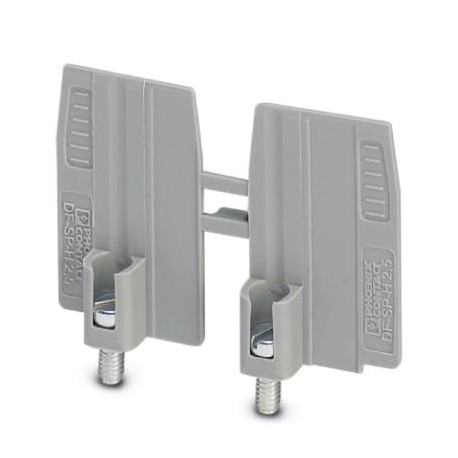

DF-SP-H 2,5 3209824 PHOENIX CONTACT Flange cover
$2.57USD
3936 in stock
Key Specifications
GTIN:4046356367035
Orderkey:3209824
Catalog page:Page 370 (C-1-2017)
Packing unit:50 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356367035 |
| Orderkey | 3209824 |
| Catalog page | Page 370 (C-1-2017) |
| Packing unit | 50 pc |
| Width (General) | 4.5 mm |
| Height (General) | 24.7 mm |
| Length (General) | 35.8 mm |
| Country of origin | PL (Poland) |
| Custom tariff number | 85389099 |
| Minimum order quantity | 50 pc |
| Screw thread (General) | M2,5 |
| Color (Key Commercial Data) | gray |
| Connection method (General) | Screw connection |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Tightening torque max (General) | 0.5 Nm |
| Tightening torque, min (General) | 0.4 Nm |
| Weight per Piece (excluding packing) | 1.430 g |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Insulating material (Key Commercial Data) | PA |
| NF F16-101, NF F10-102 Class F (Dimensions) | 2 |
| NF F16-101, NF F10-102 Class I (Dimensions) | 2 |
| Oxygen index (DIN EN ISO 4589-2) (Dimensions) | >32 % |
| Flame test method (DIN EN 60695-11-10) (Dimensions) | V0 |
| Smoke gas toxicity NFPA 130 (SMP 800C) (Dimensions) | passed |
| Surface flammability NFPA 130 (ASTM E 162) (Dimensions) | passed |
| Flammability rating according to UL 94 (Connection data) | V0 |
| Static insulating material application in cold (Dimensions) | -60 °C |
| Behavior in fire for rail vehicles (DIN 5510-2) (Dimensions) | Test passed |
| Flammability rating according to UL 94 (Key Commercial Data) | V0 |
| Calorimetric heat release NFPA 130 (ASTM E 1354) (Dimensions) | 27,5 MJ/kg |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 (Dimensions) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 (Dimensions) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 (Dimensions) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 (Dimensions) | HL 1 - HL 3 |
| Specific optical density of smoke NFPA 130 (ASTM E 662) (Dimensions) | passed |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 (Connection data) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 (Connection data) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 (Connection data) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 (Connection data) | HL 1 - HL 3 |
| Relative insulation material temperature index (Elec., UL 746 B) (Dimensions) | 130 °C |
| Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) (Dimensions) | 125 °C |
Product Description
Clamping flange caps, connection type: Screw connection, length: 35.8 mm, width: 4.5 mm, height: 24.7 mm, color: gray
