DC-B 6-ID-7X4-UT

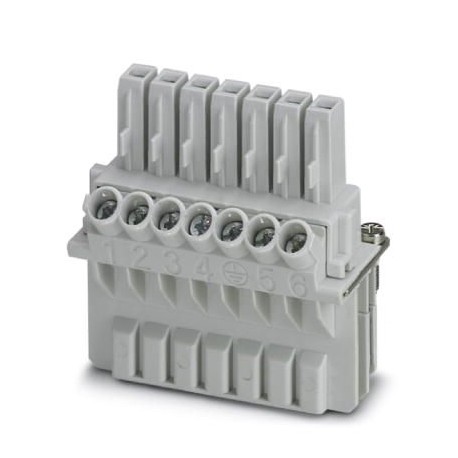

DC-B 6-ID-7X4-UT 1602203 PHOENIX CONTACT Contact insert
$0.00USD
4401 in stock
Key Specifications
GTIN:4046356027908
Note:Made to Order (non-returnable)
Orderkey:1602203
Catalog page:Page 676 (C-2-2017)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356027908 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1602203 |
| Catalog page | Page 676 (C-2-2017) |
| Packing unit | 10 pc |
| Country of origin | DE (Germany) |
| Custom tariff number | 85369010 |
| Type (Material data) | DC-B6 |
| (Ambient conditions) | 690 V (L-L) |
| Color (Material data) | gray |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Height (Key Commercial Data) | 29.5 mm |
| Tightening torque (Material data) | 0.5 Nm ... 0.6 Nm |
| Rated current (Ambient conditions) | 25 A |
| Number of positions (Material data) | 6 |
| Weight per Piece (excluding packing) | 54.800 g |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Degree of protection (IP) (Dimensions) | IP20 |
| REACh SVHC (Standards and Regulations) | Lead 7439-92-1 |
| Conductor cross section (Material data) | 0.2 mm² ... 4 mm² (6 mm² without ferrule) |
| Degree of pollution (Ambient conditions) | 3 |
| Rated surge voltage (Ambient conditions) | 6 kV |
| Overvoltage category (Ambient conditions) | III |
| Connection in acc. with standard (General) | CUL |
| Rated voltage (III/3) (Ambient conditions) | 400 V (L-PE) |
| Insertion/withdrawal cycles (Material data) | ≥ 100 |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 100 °C |
| Connection cross section AWG (Material data) | 24 ... 12 (AWG 10 without ferrule) |
| Contact material (Electrical characteristics) | Cu |
| Stripping length of the sheath (Material data) | 65 mm |
| Flammability rating according to UL 94 (General) | V0 |
| Contact carrier material (Electrical characteristics) | PA |
| Contact surface material (Electrical characteristics) | Ag |
| Stripping length of the individual wire (Material data) | 10 mm |
Product Description
DUPLICON, contact insert for plug-in connector, 6 x 4 mm² + PE, 400/690 V, 25 A, screw connection, B6 construction, IP20 protection degree
