In Stock Hot Product
D662461231

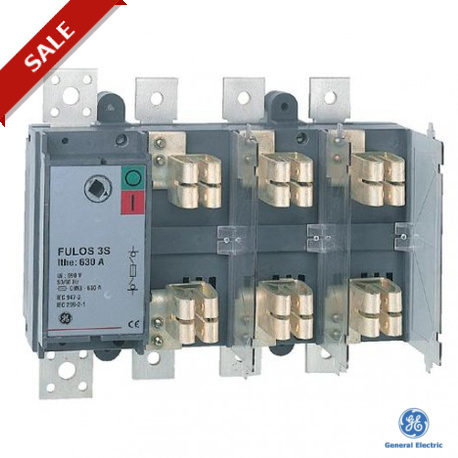

731845 GENERAL ELECTRIC Switch-disconnector-fuse Fulos 3S DIN3 630A 3P+N
$0.00USD
3533 in stock
Key Specifications
Series:Switch-disconnector-fuses - FULOS
Mounting:Panel mounting
Approvals:KEMA pending
Standards:BS88part21988;BSNBNEN60947-3;CEI17-11(Fasc.1039);DINVDE0636Teil1;DINVDE0660Teil1;IEC60269-2-1;IEC60947-1;IEC60947-3;K63B;NBNEN60947-3;NFC63-210;NFC63130;NFC63211;NFEN60269-1
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Series | Switch-disconnector-fuses - FULOS |
| Mounting | Panel mounting |
| Approvals | KEMA pending |
| Standards | BS88part21988;BSNBNEN60947-3;CEI17-11(Fasc.1039);DINVDE0636Teil1;DINVDE0660Teil1;IEC60269-2-1;IEC60947-1;IEC60947-3;K63B;NBNEN60947-3;NFC63-210;NFC63130;NFC63211;NFEN60269-1 |
| Type of fuse | DIN |
| 110V (DC23A 2P) | 500 A |
| Number of poles | 4P |
| 500V (AC21A/AC21B) | 630 A |
| 500V (AC22A/AC22B) | 630 A |
| 500V (AC23A/AC23B) | 630 A |
| 690V (AC21A/AC21B) | 630 A |
| 690V (AC22A/AC22B) | 630 A |
| 690V (AC23A/AC23B) | 630 A |
| Type of Dilos/Fulos | FULOS 3S |
| Type of disconnector | Switch-disconnector-fuse |
| ETIM 5.0 (DIMENSIONS) | EC001040 |
| ETIM 6.0 (DIMENSIONS) | EC001040 |
| 400/415V (AC21A/AC21B) | 630 A |
| 400/415V (AC22A/AC22B) | 630 A |
| 400/415V (AC23A/AC23B) | 630 A |
| Weight (SPECIFICATIONS) | 14.5 kg |
| Contact position indication | Positive contact position indication |
| Rated insulation voltage Ui (V) | 1500 V |
| Maximum torque on terminals (Nm) | 60 Nm |
| Rated operational voltage Ue (V) | 1000 V |
| Rated capacity power at 400V (kVAR) | 300 kVAr |
| Terminal capacity (Cu-rail mm x mm) | Cu-rail 2x40x6 mm |
| Conventional enclosed thermal current lthe | 630 A |
| Rated impulse withstand voltage (2000 m) Uimp | 8 kV |
| Conventional enclosed thermal current Ithe = Ith | 630 A |
| Durability (number of operational cycles) electrical | 1000 |
| Durability (number of operational cycles) mech. (min.) | 4000 |
| Rated Cond S/C current Backup protection kA rms @ 400V | 50 kA |
| Rated Cond S/C current Backup protection kA rms @ 415V | 50 kA |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Fulos 3S DIN - 630APerformance
