D661771251

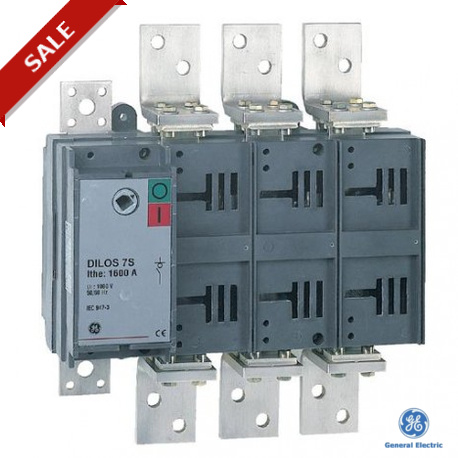

731752 GENERAL ELECTRIC Switch-disconnector Dilos 7S 1600A 3P+N (N 50%)
$0.00USD
3072 in stock
Key Specifications
Series:Switch-disconnectors - DILOS
Mounting:Panel mounting
Approvals:KEMA pending
Standards:BSNBNEN60947-3;CEI17-11(Fasc.1039);DINVDE0660Teil1;IEC60947-1;IEC60947-3;K63B;NBNEN60947-3;NFC63130
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Series | Switch-disconnectors - DILOS |
| Mounting | Panel mounting |
| Approvals | KEMA pending |
| Standards | BSNBNEN60947-3;CEI17-11(Fasc.1039);DINVDE0660Teil1;IEC60947-1;IEC60947-3;K63B;NBNEN60947-3;NFC63130 |
| 110V (DC23A 2P) | 800 A |
| 250V (DC23A 2P) | 800 A |
| Number of poles | 3P+N |
| 500V (AC21A/AC21B) | 1600 A |
| 500V (AC22A/AC22B) | 1250 A |
| 500V (AC23A/AC23B) | 800 A |
| 690V (AC21A/AC21B) | 1600 A |
| 690V (AC22A/AC22B) | 1000 A |
| 690V (AC23A/AC23B) | 630 A |
| Type of Dilos/Fulos | DILOS 7S |
| Type of disconnector | Switch-disconnector |
| ETIM 5.0 (DIMENSIONS) | EC000216 |
| ETIM 6.0 (DIMENSIONS) | EC000216 |
| 400/415V (AC21A/AC21B) | 1600 A |
| 400/415V (AC22A/AC22B) | 1600 A |
| 400/415V (AC23A/AC23B) | 1250 A |
| Weight (SPECIFICATIONS) | 19 kg |
| Contact position indication | Visible contact position indication |
| Rated insulation voltage Ui (V) | 1500 V |
| Maximum torque on terminals (Nm) | 35 Nm |
| Rated operational voltage Ue (V) | 1000 V |
| Rated capacity power at 400V (kVAR) | 780 kVAr |
| Terminal capacity (Cu-rail mm x mm) | Cu-rail 2x60x10 mm |
| Conventional enclosed thermal current lthe | 1600 A |
| Rated impulse withstand voltage (2000 m) Uimp | 8 kV |
| Conventional enclosed thermal current Ithe = Ith | 1600 A |
| Rated short time withstand current Icw (kA rms) 1 s | 50 kA |
| Durability (number of operational cycles) electrical | 1000 |
| Durability (number of operational cycles) mech. (min.) | 4000 |
| Rated Cond S/C current Backup protection kA rms @ 400V | 50 kA |
| Rated Cond S/C current Backup protection kA rms @ 415V | 50 kA |
| Rated short circuit making cap Icm (kA peak) Ue = 400V | 105 kA |
| Rated short circuit making cap Icm (kA peak) Ue = 415V | 105 kA |
| Rated short time withstand current Icw (kA rms) 0.25 s | 120 kA |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Dilos 7S - 1600APerformance
