In Stock Hot Product
D4SL-N4DFA

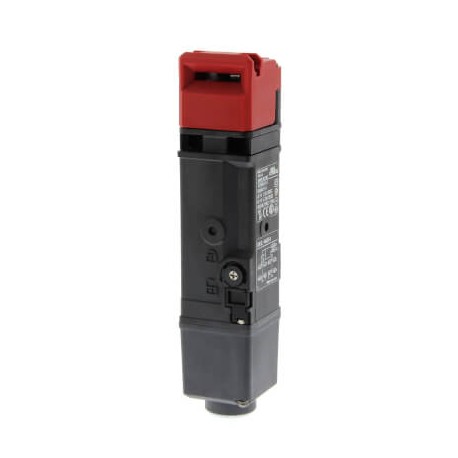

D4SL-N4DFA D4SL2093D 382551 OMRON Mechanical Lock 2NC + 2NC IP67 M20 Plastic Terminals
$0.00USD
4255 in stock
Key Specifications
():D4SL-NK5
Shape:Cuboid
Guard-lock:
Cable length:0 m
Supplier Information
OMRON
Products: 41472
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| () | D4SL-NK5 |
| Shape | Cuboid |
| Guard-lock | |
| Cable length | 0 m |
| Conduit size | M20 |
| Width sensor | 39 mm |
| Holding force | 1300 N |
| Material head | Resin |
| Overall length | 155 mm |
| Door contacts NC | 2 |
| Door contacts NO | 0 |
| Door switch type | Key-operated |
| Height of sensor | 39 mm |
| Material housing | Plastic |
| Solenoid voltage | 24 V |
| Connection method | System connector |
| Lock/Release logic | Power to unlock (Mechanical lock) |
| Number of conduits | 1 |
| With LED indicator | |
| Lock/Release key type | Standard key |
| Direction of operation | Adjustable |
| Lock monitor contacts NC | 2 |
| Lock monitor contacts NO | 0 |
| Degree of protection (IP) | IP67 |
| Lock/Release key material | Metal |
| Lock/Release key position | Front + Back |
| Ambient temperature (operating) | -10-55 °C |
Product Description
Guard lock safety-door switch, D4SL-N, M20, 2NC + 2NC, head: resin, Mechanical lock/24VDC solenoid release
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
