D4NL-2FFA-B
D4NL-2FFA-B D4NL0017R 133805 OMRON Mechanical Lock/Opening solen.24Vdc 3NC+2NC LED G1/2
$170.63USD
92 in stock
Key Specifications
Shape:Cuboid
Guard-lock:
Cable length:0 m
Conduit size:G1/2
Supplier Information
OMRON
Products: 41472
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Shape | Cuboid |
| Guard-lock | |
| Cable length | 0 m |
| Conduit size | G1/2 |
| Width sensor | 88.5 mm |
| Holding force | 1300 N |
| Material head | Plastic |
| Switch action | Slow action |
| Overall length | 95 mm |
| Door contacts NC | 2 |
| Door contacts NO | 1 |
| Door switch type | Key-operated |
| Height of sensor | 35.5 mm |
| Material housing | Plastic |
| Solenoid voltage | 24 V |
| Connection method | Terminal block |
| Lock/Release logic | Power to unlock (Mechanical lock) |
| Number of conduits | 2 |
| With LED indicator | |
| Lock/Release key type | Standard key |
| Direction of operation | Adjustable |
| Switch without actuator | |
| Lock monitor contacts NC | 2 |
| Lock monitor contacts NO | 0 |
| Degree of protection (IP) | IP67 |
| Lock/Release key material | Metal |
| Lock/Release key position | Bottom |
| Ambient temperature (operating) | -10-55 °C |
Product Description

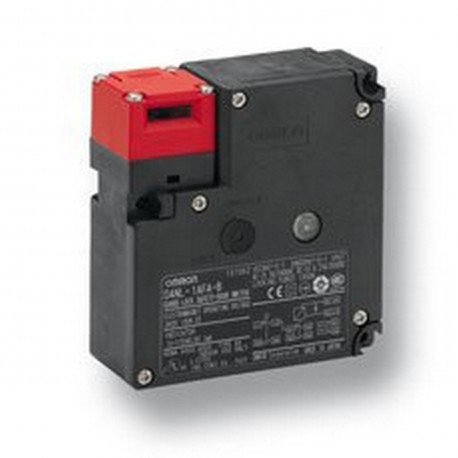

Safety door-lock switch, G1/2 entry, 3NC + 2NC, mechanical lock, 24 VDC
