D4N-9131

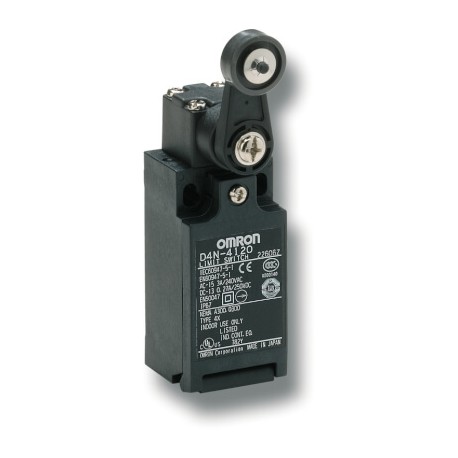

D4N-9131 D4N 0039F 170116 OMRON Safety limit switch, D4N, M12 connector (1 conduit), 1NC/1NA (push-pull), up..
$42.79USD
265 in stock
Key Specifications
:Roller lever(resin lever, resin roller)
Electrical:500,000 operations min. for a resistive load of 3 A at 250 VAC300,000 operations min. for a resistive load of 10 A at 250 VAC
Order code:Order code
Contact gap:Snap-action: 2x0.5 mm minSlow-action: 2x2 mm min
Supplier Information
OMRON
Products: 41472
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Roller lever(resin lever, resin roller) | |
| Electrical | 500,000 operations min. for a resistive load of 3 A at 250 VAC300,000 operations min. for a resistive load of 10 A at 250 VAC |
| Order code | Order code |
| Contact gap | Snap-action: 2x0.5 mm minSlow-action: 2x2 mm min |
| Durability2 | Mechanical |
| Actuator type | Connection method |
| M12 connector | D4N-9120 |
| Operating speed | Roller lever |
| Ambient temperature | Operating |
| Operating frequency | 30 operations/minute max. |
| Degree of protection | IP67 (EN60947-5-1) |
| 1NC/1NO (slow-action) | 2NC/1NO (slow-action) |
| 1NC/1NO (snap-action) | 1NC/1NO (slow-action) |
| Minimum applicable load | Resistive load of 1 mA at 5 VDC (N-level reference value) |
| Rated open thermal current (Ith) | 10 A (EN60947-5-1) |
| Conditional short-circuit current | 100 A (EN60947-5-1) |
| Protection against electric shock | Class II (double insulation) |
| Pollution degree (operating environment) | 3 (EN60947-5-1) |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
The D4N series of limit switches in plastic housing is the ideal switch for all standard mechanical position detection applications both for safety and non-safety applications.
