In Stock Hot Product
D40Z-1C2
D40Z-1C2 D40Z0001A 356424 OMRON Magnetic Plast. Codif. LED Cat4/Ple Salt Aux Cable 2m
$266.91USD
79 in stock
Key Specifications
Cable length:2 m
LED indicators:Actuator detected (yellow), Actuator not detected (red)
Mounting method:M4 screws
Material housing:PBT
Supplier Information
OMRON
Products: 41472
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Cable length | 2 m |
| LED indicators | Actuator detected (yellow), Actuator not detected (red) |
| Mounting method | M4 screws |
| Material housing | PBT |
| Vibration resistance | 10 to 55 to 10 Hz (single amplitude: 0.75 mm, double amplitude: 1.5 mm) |
| Min. shock resistance | 300 m/s² |
| Max. power consumption | 0.5 W |
| Switch without actuator | |
| Max. differential travel | 20 % |
| Degree of protection (IP) | IP67 |
| Auxiliary monitoring output | Photocoupler output: 24 V DC, load current: 10 mA |
| Number of connectable switches | 30 max. (wiring length: 100 m max.) |
| Ambient temperature (operating) | -10-65 °C |
| Max. operating distance ON to OFF | 15 mm |
| Min. operating distance OFF to ON | 5 mm |
Product Description

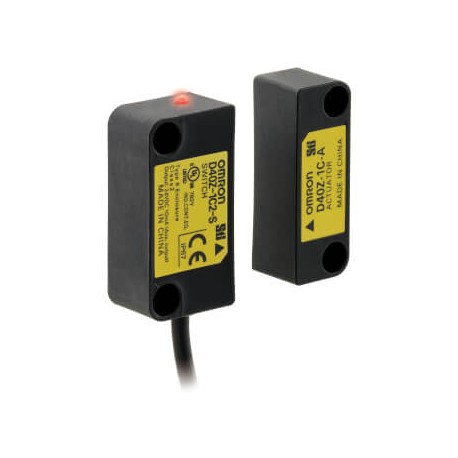

Non-contact door switch, compact sensor, LED indicator, 1NO aux, requires G9SX-NS or G9SP controller for Category 4/PLe, 2 m
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
