In Stock Hot Product
D40ML-SS1-U-M12

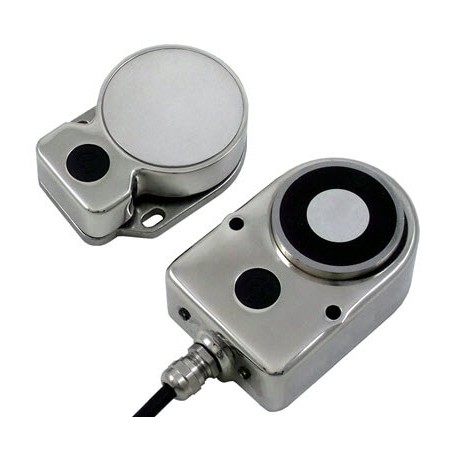

D40ML-SS1-U-M12 AA044811B 669703 OMRON Stainless steel Unique PLe RFID Magnetic Blocking Switch. IP69K 950N ..
$0.00USD
4559 in stock
Key Specifications
():D40ML-CBL-M12-5M
Coding:Unique
Guard-lock:
Cable length:0.25 m
Supplier Information
OMRON
Products: 41472
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| () | D40ML-CBL-M12-5M |
| Coding | Unique |
| Guard-lock | |
| Cable length | 0.25 m |
| Width sensor | 80 mm |
| Holding force | 950 N |
| Overall length | 115 mm |
| Door contacts NC | 2 |
| Door contacts NO | 0 |
| Door switch type | RFID magnetic |
| Height of sensor | 43 mm |
| Material housing | Stainless steel |
| Solenoid voltage | 24 V |
| Connection method | M12 pigtail connector |
| Lock/Release logic | Power to lock (Solenoid lock) |
| With LED indicator | |
| Lock/Release key type | N/A |
| Switch without actuator | |
| Lock monitor contacts NC | 0 |
| Lock monitor contacts NO | 1 |
| Degree of protection (IP) | IP67 |
| Ambient temperature (operating) | -25-40 °C |
Product Description
RFID Magnetic Locking Safety Switch, Stainless Steel, 950N, Unique Actuator Code, Pigtail w/M12 Connector
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
