D40A-1C015-F

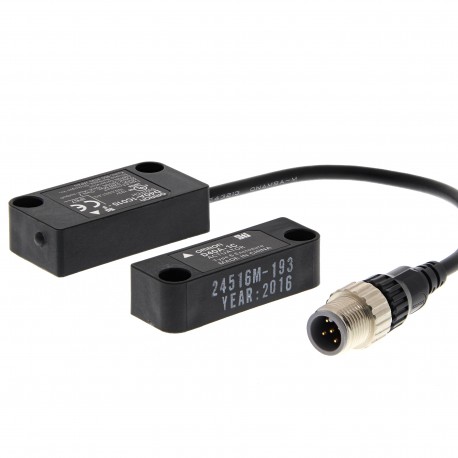

D40A-1C015-F D40A6003D 355125 OMRON Door Switch E. Hall 1 Aux PNP NA Cable 0.15m + M12
$0.00USD
3177 in stock
Key Specifications
5 m (Specifications & ordering info):D40A-1C5
Item (Specifications & ordering info):G9SX-NS202-_/G9SX-NSA222-T03-_
Material (Specifications & ordering info):PBT resin
Instantaneous (Specifications & ordering info):OFF-delayed5
Supplier Information
OMRON
Products: 41472
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| 5 m (Specifications & ordering info) | D40A-1C5 |
| Item (Specifications & ordering info) | G9SX-NS202-_/G9SX-NSA222-T03-_ |
| Material (Specifications & ordering info) | PBT resin |
| Instantaneous (Specifications & ordering info) | OFF-delayed5 |
| Safety input8 (Specifications & ordering info) | Operating voltage: 20.4 VDC to 26.4 VDC, internal impedance: approx. 2.8 kΩ |
| Classification (Specifications & ordering info) | Auxiliary outputs |
| LED indicators (Specifications & ordering info) | Actuator not detected (red); actuator detected (yellow) |
| Mounting method (Specifications & ordering info) | M4 screws |
| Safety outputs2 (Specifications & ordering info) | Auxiliary outputs3 |
| Standard models (Specifications & ordering info) | Semiconductor outputs1 |
| Auxiliary output (Specifications & ordering info) | PNP transistor outputLoad current: 100 mA max. |
| Shock resistance (Specifications & ordering info) | 300 m/s2min. |
| Connection cables (Specifications & ordering info) | 2 m, 5 m |
| Power consumption (Specifications & ordering info) | 0.6 W max. |
| Auxiliary outputs7 (Specifications & ordering info) | 24 VDC, 10 mA (PNP open-collector outputs) |
| 2 (Semi-conductors) (Specifications & ordering info) | 3.0 s |
| Degree of protection (Specifications & ordering info) | IP67 |
| Rated supply voltage (Specifications & ordering info) | 24 VDC |
| Vibration resistance (Specifications & ordering info) | 10 to 55 to 10 Hz (single amplitude: 0.75 mm, double amplitude: 1.5 mm) |
| Spring-cage terminals (Specifications & ordering info) | G9SX-NSA222-T03-RC |
| Operatingcharacteristics6 (Specifications & ordering info) | Operating distance OFF®ON |
| Differential travel (max.) (Specifications & ordering info) | 20% of operating distance |
| Operating distance ON®OFF (Specifications & ordering info) | 15 mm max. |
| Ambient operating temperature (Specifications & ordering info) | −10 to 55°C (no icing or condensation) |
| Number of connectable switches (Specifications & ordering info) | 30 max. (wiring length: 100 m max.) |
| Pigtail with M12 connector 4-pole (Specifications & ordering info) | D40A-1C015-F |
| Instantaneous safety outputOFF-delayed safety output (Specifications & ordering info) | P channel MOS FET transistor outputLoad current: 0.8 A DC max. |
| Example: Wiring a single switchNote: The auxiliary output load current must be 10 mA max. (Specifications & ordering info) | Example: Wiring multiple switchesConnect up to 30 Non-contact door switches |
Product Description
Non-contact door switches, 1 aux output, Pigtail with M12 connector 4-pole
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Classification
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
