D32PC 2,2/ 3-5,08-Z

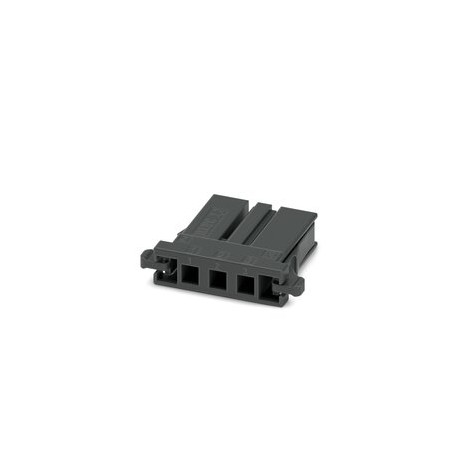

D32PC 2,2/ 3-5,08-Z 1378299 PHOENIX CONTACT Connector for printed circuit board, color: black, rated current..
$0.68USD
14754 in stock
Key Specifications
Pitch:5.08 mm
Result:Test passed
Amplitude:0.35 mm (10 Hz ... 60.1 Hz)
Frequency:10 - 150 - 10 Hz
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Pitch | 5.08 mm |
| Result | Test passed |
| Amplitude | 0.35 mm (10 Hz ... 60.1 Hz) |
| Frequency | 10 - 150 - 10 Hz |
| Width [w] | 29.3 mm |
| Height [h] | 7.15 mm |
| Length [l] | 22.8 mm |
| Pulse shape | Half-sine |
| Sweep speed | 1 octave/min |
| Acceleration | 30g |
| Locking type | Snap-in locking |
| Product line | CONNEXIS Connectors M |
| Product type | PCB connector |
| No. of cycles | 25 |
| Specification | IEC 60068-2-70:1995-12 |
| Number of rows | 1 |
| Product family | D32PC 2,2/ |
| Shock duration | 11 ms |
| Thermal stress | 105 °C/168 h |
| Color (Housing) | black (9005) |
| Mounting flange | Self-locking flange |
| Test directions | X-, Y- and Z-axis (pos. and neg.) |
| Corrosive stress | 0.2 dm3SO2on 300 dm3/40 °C/1 cycle |
| Stripping length | 4.5 mm |
| Connection method | Crimp connection |
| Type of packaging | packed in cardboard |
| Contact resistance | 0.9 mΩ |
| Nominal current IN | 8 A |
| Nominal voltage UN | 320 V |
| Degree of pollution | 3 |
| Dimensional drawing | |
| Insulating material | PBT |
| Note on the contact | These connectors conform to DIN EN 61984, connectors without switching capacity (COC). When used for their intended purpose, they must not be plugged in or disconnected live or under load. |
| Number of positions | 3 |
| Rated voltage (II/2) | 500 V |
| Contact resistance R1 | 0.9 mΩ |
| Contact resistance R2 | 1 mΩ |
| Rated voltage (III/2) | 320 V |
| Rated voltage (III/3) | 250 V |
| Test duration per axis | 2.5 h |
| Insulating material group | II |
| CTI according to IEC 60112 | 400 ≤ CTI |
| Rated surge voltage (II/2) | 4 kV |
| Tested number of positions | 10 |
| Conductor cross section AWG | 28 ... 14 |
| Insertion/withdrawal cycles | 25 |
| Rated surge voltage (III/2) | 4 kV |
| Rated surge voltage (III/3) | 4 kV |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Ambient temperature (operation) | -55 °C ... 105 °C (dependent on the derating curve) |
| Rated insulation voltage (II/2) | 500 V |
| Rated insulation voltage (III/2) | 320 V |
| Rated insulation voltage (III/3) | 250 V |
| minimum creepage distance (II/2) | 3.6 mm |
| Power-frequency withstand voltage | 2.21 kV |
| minimum creepage distance (III/2) | 3 mm |
| minimum creepage distance (III/3) | 3.6 mm |
| Conductor/PCB connection direction | 0 ° |
| Withdraw strength per pos. approx. | 4 N |
| Insertion strength per pos. approx. | 3 N |
| Relative humidity (storage/transport) | 30 % ... 70 % |
| Flammability rating according to UL 94 | V0 |
| Impulse withstand voltage at sea level | 4.8 kV |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Comparative tracking index (IEC 60112) | CTI ≥400 to <600 |
| Insulation resistance, neighboring positions | > 5 MΩ |
| minimum clearance value - non-homogenous field (II/2) | 3 mm |
| minimum clearance value - non-homogenous field (III/2) | 3 mm |
| minimum clearance value - non-homogenous field (III/3) | 3 mm |
| Conductor cross section/conductor type/tractive force setpoint/actual value | AWG 28 / flexible / > 11 N |
Product Description
PCB connector, color: black, rated current: 8 A, rated voltage (III/2): 320 V, contact type: female, number of rows: 1, number of poles: 3, item family: D32PC 2.2/, pitch: 5.08 mm, connection type: cr
