In Stock Hot Product
D061302201

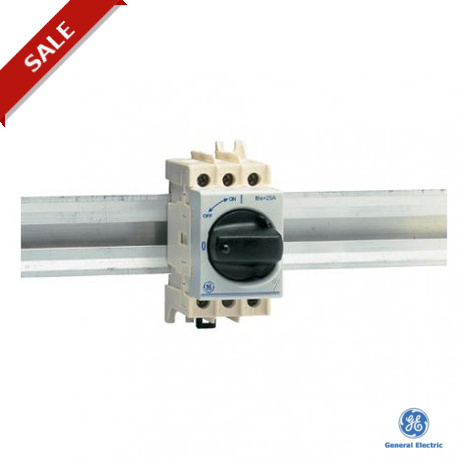

730986 GENERAL ELECTRIC Switch-disconnector Dilos 00 25A 3P DIN-rail
$0.00USD
3371 in stock
Key Specifications
Series:Switch-disconnectors - DILOS
Mounting:DIN-rail
Approvals:KEMA
Standards:BSNBNEN60947-3;CEI17-11(Fasc.1039);DINVDE0660Teil1;IEC60947-1;IEC60947-3;K63B;NBNEN60947-3;NFC63130
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Series | Switch-disconnectors - DILOS |
| Mounting | DIN-rail |
| Approvals | KEMA |
| Standards | BSNBNEN60947-3;CEI17-11(Fasc.1039);DINVDE0660Teil1;IEC60947-1;IEC60947-3;K63B;NBNEN60947-3;NFC63130 |
| 110V (DC23A 2P) | 25 A |
| 250V (DC23A 2P) | 25 A |
| Number of poles | 3P |
| 500V (AC21A/AC21B) | 25 A |
| 500V (AC22A/AC22B) | 25 A |
| 500V (AC23A/AC23B) | 25 A |
| 690V (AC21A/AC21B) | 25 A |
| 690V (AC22A/AC22B) | 25 A |
| 690V (AC23A/AC23B) | 25 A |
| Type of Dilos/Fulos | DILOS 00 |
| Type of disconnector | Switch-disconnector |
| ETIM 5.0 (DIMENSIONS) | EC000216 |
| ETIM 6.0 (DIMENSIONS) | EC000216 |
| 400/415V (AC21A/AC21B) | 25 A |
| 400/415V (AC22A/AC22B) | 25 A |
| 400/415V (AC23A/AC23B) | 25 A |
| Weight (SPECIFICATIONS) | 0.125 kg |
| Contact position indication | Positive contact position indication |
| Rated insulation voltage Ui (V) | 690 V |
| Maximum torque on terminals (Nm) | 2.2 Nm |
| Rated operational voltage Ue (V) | 690 V |
| Terminal capacity (Cu) min/max (mm²) | 1.5 mm²/16 mm² |
| Conventional enclosed thermal current lthe | 25 A |
| Max Rated Operational Power 500V (AC23 (kW)) | 7.5 kW |
| Max Rated Operational Power 690V (AC23 (kW)) | 11 kW |
| Rated impulse withstand voltage (2000 m) Uimp | 8 kV |
| Conventional enclosed thermal current Ithe = Ith | 25 A |
| Max Rated Operational Power 400/415V (AC23 (kW)) | 7.5 kW/7.5 kW |
| Rated short time withstand current Icw (kA rms) 1 s | 1 kA |
| Durability (number of operational cycles) electrical | 3000 |
| Durability (number of operational cycles) mech. (min.) | 40000 |
| Rated Cond S/C current Backup protection kA rms @ 400V | 50 kA |
| Rated Cond S/C current Backup protection kA rms @ 415V | 50 kA |
| Rated Cond S/C current Backup protection kA rms @ 500V | 50 kA |
| Rated Cond S/C current Backup protection kA rms @ 690V | 50 kA |
| Rated short circuit making cap Icm (kA peak) Ue = 400V | 4.5 kA |
| Rated short circuit making cap Icm (kA peak) Ue = 415V | 4.5 kA |
| Rated short circuit making cap Icm (kA peak) Ue = 500V | 3 kA |
| Rated short circuit making cap Icm (kA peak) Ue = 690V | 3 kA |
Product Description
D061302201
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Dilos 00 - 16A up to 40APerformance
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
