D-PTB 2,5-PE/L/L

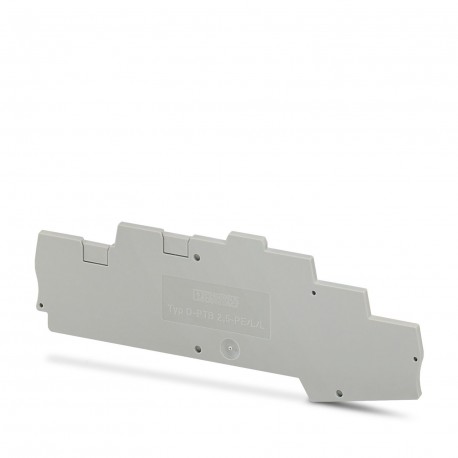

D-PTB 2,5-PE/L/L 3210553 PHOENIX CONTACT End cover
$0.55USD
18213 in stock
Key Specifications
Color:gray (RAL 7042)
Depth:43.6 mm
Width:2.2 mm
Height:118.7 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Color | gray (RAL 7042) |
| Depth | 43.6 mm |
| Width | 2.2 mm |
| Height | 118.7 mm |
| Material | PA |
| Product type | End cover |
| Article revision | 01 |
| Depth on NS 35/7,5 | 42.3 mm |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
| Permissible humidity (operation) | 20 % ... 90 % |
| Flammability rating according to UL 94 | V0 |
| Smoke gas toxicity NFPA 130 (SMP 800C) | passed |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
| Surface flammability NFPA 130 (ASTM E 162) | passed |
| Static insulating material application in cold | -60 °C |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 |
| Specific optical density of smoke NFPA 130 (ASTM E 662) | passed |
| Relative insulation material temperature index (Elec., UL 746 B) | 130 °C |
Product Description
End cap, length: 118.7 mm, width: 2.2 mm, height: 43.6 mm, colour: grey
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
