D-PT 4-QUATTRO BU

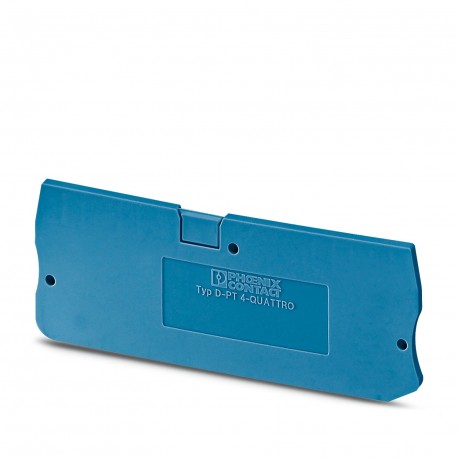

D-PT 4-QUATTRO BU 1072360 PHOENIX CONTACT End cover, length: 77 mm, width: 2.2 mm, height: 29 mm, color: blue
$0.00USD
3378 in stock
Key Specifications
Depth:29 mm
Width:2.2 mm
Colour:blue (RAL 5015)
Height:77 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Depth | 29 mm |
| Width | 2.2 mm |
| Colour | blue (RAL 5015) |
| Height | 77 mm |
| Material | PA |
| Lid Width | 2.2 mm |
| Product Type | End cover |
| Article Review | 00 |
| Ambient Temperature (Drive) | -5 °C ... 70 °C |
| Ambient Temperature (Service) | -60 °C ... 110 °C (Operating temperature range incl. self-heating, max. short-term operating temperature; see RTI Elec.) |
| Ambient Temperature (Mounting) | -5 °C ... 70 °C |
| Permissible air humidity (service) | 20 % ... 90 % |
| Flammability class according to UL 94 | V0 |
| NFPA 130 Flue Gas Toxicity (SMP 800C) | approved |
| Static use of cold insulating material | -60 °C |
| Ambient Temperature (Storage/Transport) | -25°C ... 60 °C (For a short time, no more than 24 hours, from -60 °C to +70 °C) |
| Permissible air humidity (storage/transport) | 30 % ... 70 % |
| Flammability of NFPA 130 Surfaces (ASTM E 162) | approved |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 |
| NFPA 130 Specific Optical Flue Gas Density (ASTM E 662) | approved |
| Relative Insulating Material Temperature Index (Elec., UL 746 B) | 130 °C |
