D-MSBV 2,5-F

Parameter	Value
Color	gray (RAL 7042)
Depth	20 mm
Width	9.9 mm
Height	32 mm
General	with flange fixing
Material	PA
Product type	End cover
Depth on NS 15	30 mm
Article revision	02
Dimensional drawing
Ambient temperature (assembly)	-5 °C ... 70 °C
Ambient temperature (actuation)	-5 °C ... 70 °C
Ambient temperature (operation)	-60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.)
Permissible humidity (operation)	20 % ... 90 %
Flammability rating according to UL 94	V0
Smoke gas toxicity NFPA 130 (SMP 800C)	passed
Ambient temperature (storage/transport)	-25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C)
Permissible humidity (storage/transport)	30 % ... 70 %
Surface flammability NFPA 130 (ASTM E 162)	passed
Static insulating material application in cold	-60 °C
Calorimetric heat release NFPA 130 (ASTM E 1354)	28 MJ/kg
Fire protection for rail vehicles (DIN EN 45545-2) R22	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26	HL 1 - HL 3
Specific optical density of smoke NFPA 130 (ASTM E 662)	passed
Relative insulation material temperature index (Elec., UL 746 B)	130 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))	130 °C

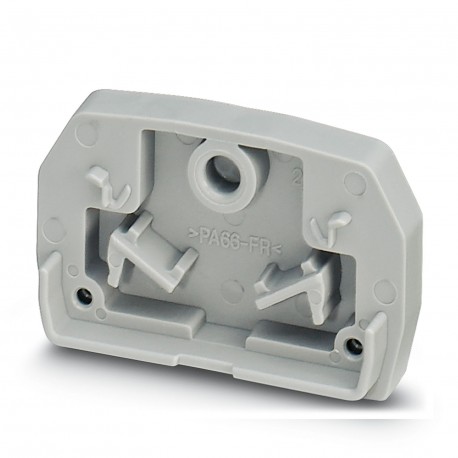

End cap, length: 32 mm, width: 9.9 mm, height: 20 mm, colour: grey
