CX2E0RB/20-064V

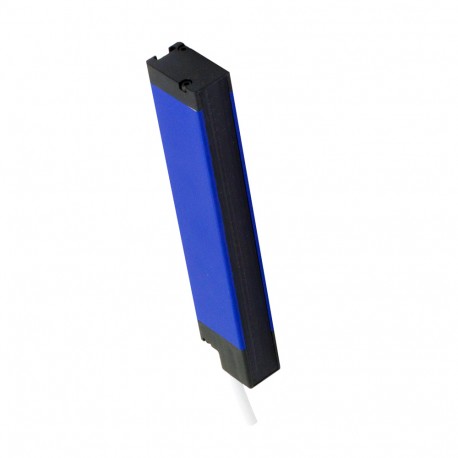

CX2E0RB/20-064V MICRO DETECTORS Area sensor, Synchronization by cable, P: 10mm, H: 640mm, Sensing distance 6..
$0.00USD
4879 in stock
Key Specifications
Weight:1500g
Emission:infrared
Approvals:CEcULus
Dimensions:20mm x 649mm x 35mm
Supplier Information
MICRO DETECTORS
Products: 33669
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Weight | 1500g |
| Emission | infrared |
| Approvals | CEcULus |
| Dimensions | 20mm x 649mm x 35mm |
| Beams space | 20mm |
| Connections | 1xM12, 4 poli, maschio (CX2E); 1xM12, 8 poli, maschio (CX2R) |
| Output type | 2 digital output |
| Load current | < 100mA |
| LED indicators | red and yellow (emitter) - green, red and yellow (receiver) |
| number of rays | 33 |
| Leakage current | ≤ 10µA |
| Output Function | NPN+PNP |
| Housing Material | painted aluminium RAL5002 |
| EMC compatibility | IEC 60947-5-2 |
| Operating Voltage | 16,8…30Vdc |
| controlled height | 640mm |
| Function Principle | emitter/receiver |
| Max ripple content | < 1,2Vpp |
| Output voltage drop | < 1,5V @ 100mA |
| Storage temperature | - 25°C…+ 60° C (without freeze) |
| Switching frequency | [(0,2 x No.beams - 1) + 1] x 2ms |
| Active Head Material | PMMA |
| Degree of protection | IP67 |
| Supplied Accessories | ST151 fixing kit |
| Operating temperature | - 10°C…+ 55° C (without freeze) |
| Shocks and vibrations | IEC EN 60947-5-2 |
| No-Load supply current | ≤330ma |
| Sensitivity adjustment | Teach-in wire |
| Nominal sensing distance | 0,3 … 6m |
| Short-circuit protection | Yes |
| minimum detectable object | 20mm |
| Reverse Polarity Protection | Yes |
| Interference to external light | IEC EN 60947-5-2 |
| Time delay before availability | < 3s |
| Impulsive Overvoltage Protection | Yes |
Product Description
CX2E0RB/20-064V Area sensor One cable sync., P: 20mm , H: 640mm, Sn 6m, Teach G/F, Blanking, parallel beams
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
