In Stock Hot Product

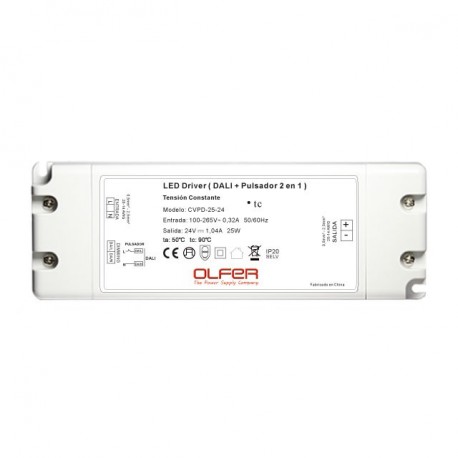

CVPD-25-24
CVPD-25-24 MEANWELL AC-DC Multi-Stage LED driver Constant Current (CC), Input: 100-265VAC. Output: 24VDC. 1,..
$0.00USD
4650 in stock
Key Specifications
Name:CVPD-25-24
State:New
Stock:Yes
Format:Box
Supplier Information
MEANWELL
Products: 6448
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Name | CVPD-25-24 |
| State | New |
| Stock | Yes |
| Format | Box |
| Series | CVPD |
| Dimming | DALI, Push-button |
| Approvals | EC |
| Power (W) | 25,00 |
| Subformato | IP20 |
| Width (mm) | 54.00 |
| Height (mm) | 20.00 |
| AC input Max | 265,00 |
| AC input Min | 100,00 |
| Applications | Lighting |
| Manufacturer | OLFER |
| Product type | LED Driver |
| Isolation (V) | 3.750,00 |
| Output voltage | 24,00 |
| Peak Power (W) | Twenty five |
| Input connector | Cable |
| Input frequency | 50 Hz, 60 Hz |
| Long/Background | 155.00 |
| Long Description | LED driver dimmable by DALI and push button.Specially designed to feed LED strips.Format in plastic boxIP20.Input range100-265Vca47-63Hz.Output voltage24vdc.Output intensity1,04 To. Range of current output 0-1,04 according To the demand load.Power:25W.Efficiency typical:82%.Regulation DALIof 0.1% to 100% of the output intensity and push button. Certificate to DALI.Input class II without grounding.Factor corrector, power>0,9to 230vac at full load.Operating temperature range of caseTcfrom-40ºCup+50ºC.Dimensions (Length x Width x Height):155 x 54 x 20mm.5 years of warranty.Manufacturer:OLFER.The number CVPD-25 are LED drivers with dimming DALI and push button, with output constant voltage with PFC included. This source is designed to work directly with LED strips or LED bulbs of 24V which is fed at constant voltage and are adjustable. Has a high efficiency as well as the active correction of the power factor. Allows the switching on and off by the regulation and has a minimum value of regulation of 0.1%, thus providing a perfect adjustment..The number CVPD-25 are LED drivers class II without grounding. With plastic housing, IP20. These sources are designed for applications with LED strips, LED panels, signage, retro-lighting, furniture and interior design. |
| Output connector | Cable |
| Type of Entry CA | Single-phase |
| Warranty (Years) | 5,00 |
| Country of Origin | China |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
LED driver dimmable by DALI and push button.
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
