In Stock Hot Product
CUV03302

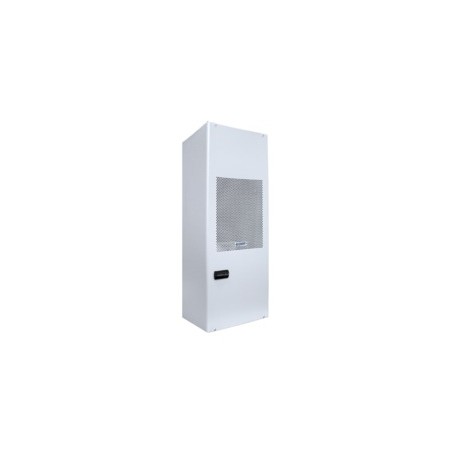

CUV03302 ELDON Cooling unit 330W CUV03302
$0.00USD
3824 in stock
Key Specifications
Weight:17 Kg
Noise (dB):60
Current (A):1,4
Voltage (V):230-1-50/60
Supplier Information
ELDON
Products: 4827
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Weight | 17 Kg |
| Noise (dB) | 60 |
| Current (A) | 1,4 |
| Voltage (V) | 230-1-50/60 |
| Capacity (W) | 330 |
| Characteristics | |
| Finish: (Technical data) | RAL 7035. |
| Material: (Technical data) | Mild steel. |
| Approvals: (Technical data) | CE, UL “for USA and Canada”. |
| Protection: (Technical data) | IP 54 towards the enclosure, and IP 34 towards the surroundings. |
| Description: (Technical data) | High performance cooling unit for vertical installation. The unit is mounted flush with the outside surface so maximizing space inside the enclosure. The air conditioners cover a cooling range from 330W to 4000W. Common to all models is the self cleaning condenser coil which eliminates the necessity for an air filter and therfore avoiding ordinary maintenance. Cooling capacity shown in the table is at L35/L35, the cooling capacity for specific conditions are indicated in the diagrams. Most models are equipped with Condensate Dissipator (starting from CUV10502). The electrical thermostat (ECB) is installed on most models (starting from CUV05002). Ozone friendly refrigerant R134a. |
| Document (PDF) (Technical data) | GOST |
| Type of connection: (Technical data) | Spring-type terminal included. |
| Temperature limits inside: (Technical data) | 25ºC to 45ºC. |
| Temperature limits outside: (Technical data) | 20ºC to 55ºC. |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
