CUC-PP-D1PGY/R4GC8

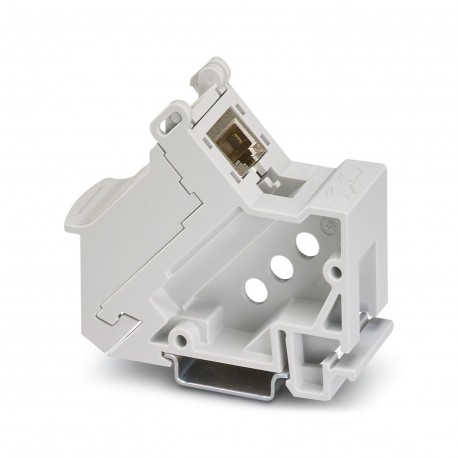

CUC-PP-D1PGY/R4GC8 1418094 PHOENIX CONTACT DIN rail adapter
$0.00USD
3357 in stock
Key Specifications
Type:Rail-mountable module
Color:gray
Product type:Patch panel
Frequency range:250 MHz
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Rail-mountable module |
| Color | gray |
| Product type | Patch panel |
| Frequency range | 250 MHz |
| Number of slots | 2 |
| Article revision | 00 |
| Contact material | CuSn |
| Housing material | PC-GF |
| Connection method | Coupling |
| Operating voltage | 72 V (DC) |
| Connection profile | RJ45 |
| Nominal current IN | 1.5 A |
| Number of positions | 8 |
| Rated surge voltage | 1 kV |
| Degree of protection | IP20 |
| Insulation resistance | > 500 MΩ (100 V DC) |
| Rated voltage (III/3) | 72 V (DC) |
| Contact carrier material | Die-cast zinc alloy |
| Contact surface material | Gold over nickel |
| Insertion/withdrawal cycles | ≥ 750 |
| Ambient temperature (operation) | -10 °C ... 60 °C |
| Flammability rating according to UL 94 | V0 |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
Product Description
DIN rail adapter, design: RJ45, degree of protection: IP20, number of positions: 8, 1 Gbps, CAT6, material: PC-GF, connection method: Coupling, color: gray
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
