CTX2020048A

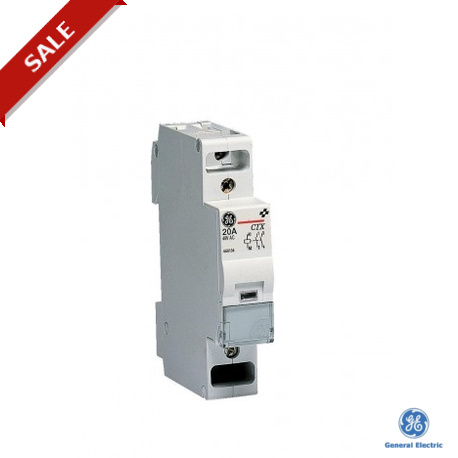

CTX2020048A 666134 GENERAL ELECTRIC CONTAX contactor 20A 2NO 48vac
$0.00USD
3303 in stock
Key Specifications
Status:Active
ETIM 5.0 (DIMENSIONS):EC001653
ETIM 6.0 (DIMENSIONS):EC001653
Weight (SPECIFICATIONS):0.2 kg
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Status | Active |
| ETIM 5.0 (DIMENSIONS) | EC001653 |
| ETIM 6.0 (DIMENSIONS) | EC001653 |
| Weight (SPECIFICATIONS) | 0.2 kg |
| (ORDER/DELIVERY STATUS) | 8.0 VA / 5.0 W |
| AC/DC (ORDER/DELIVERY STATUS) | AC |
| Family (ORDER/DELIVERY STATUS) | Contactor - Contax |
| Screws (ORDER/DELIVERY STATUS) | Pozidriv 1 |
| Approvals (ORDER/DELIVERY STATUS) | CE;VDE |
| Standards (ORDER/DELIVERY STATUS) | IEC 60947-4-1, EN 60947-4-1, IEC 61095, EN 61095 |
| Coil voltage (V) (ORDER/DELIVERY STATUS) | 48 V |
| Standard packing (ORDER/DELIVERY STATUS) | 12 |
| Number of modules (ORDER/DELIVERY STATUS) | 1 |
| Contact combination (ORDER/DELIVERY STATUS) | 2NO |
| Terminal capacity min (ORDER/DELIVERY STATUS) | 1 x 1 mm² |
| Magnet contr sys Screws (ORDER/DELIVERY STATUS) | Pozidriv 1 |
| Mechanical service life (ORDER/DELIVERY STATUS) | 1.000.000 connections |
| Rated switching capacity (A) (ORDER/DELIVERY STATUS) | 20 A |
| Terminal capacity max (mm²) (ORDER/DELIVERY STATUS) | 1 x 10 mm² / 2 x 4 mm² |
| Rated insulation voltage (Vac) (ORDER/DELIVERY STATUS) | 400Vac |
| Rated operational voltage (Vac) (ORDER/DELIVERY STATUS) | 250Vac |
| Ohmic loss per contact at In (W) (ORDER/DELIVERY STATUS) | 1.0 W |
| Electrical service life AC1 / AC7a (ORDER/DELIVERY STATUS) | 150000 |
| Electrical service life AC3 / AC7b (ORDER/DELIVERY STATUS) | 150000 |
| Maximum switching frequency AC1/AC7A (ORDER/DELIVERY STATUS) | 300/h |
| Maximum switching frequency AC3/AC7B (ORDER/DELIVERY STATUS) | 600/h |
| Magnet contr sys Control voltage range (ORDER/DELIVERY STATUS) | 85 - 110%x Vnom |
| Magnet contr sys Switching-on delay (ms) (ORDER/DELIVERY STATUS) | 9 - 12 ms |
| Magnet contr sys Switching-off delay (ms) (ORDER/DELIVERY STATUS) | 10 - 12 ms |
| Fuse type GL for short-circuit protection (A) (ORDER/DELIVERY STATUS) | 20 A |
| Magnet contr sys Terminal capacity max (mm²) (ORDER/DELIVERY STATUS) | 1 x 4 mm² or 2 x 2.5 mm² |
| Magnet contr sys Terminal capacity min (mm²) (ORDER/DELIVERY STATUS) | 1 x 1 mm² |
| Magnet contr sys Rated operating frequency (Hz) (ORDER/DELIVERY STATUS) | 50 or 60Hz |
| Switching-on capacity at 220-230Vac 1-phase (A) (ORDER/DELIVERY STATUS) | 100 A |
| Magnet contr sys Maximum holding coil power loss (ORDER/DELIVERY STATUS) | 3.2 VA / 1.2 W |
| Switching-off capacity at 220-230Vac 1-phase (A) (ORDER/DELIVERY STATUS) | 80 A |
| Magnet contr sys Operating temperature range (°C) (ORDER/DELIVERY STATUS) | -25°C / +55°C |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
