CTX + R162012A

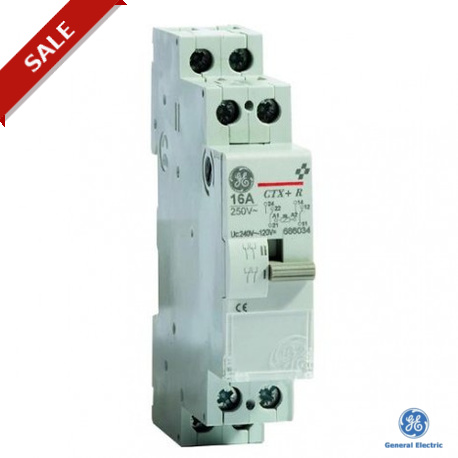

CTX + R162012A 686024 GENERAL ELECTRIC CONTAX-R+relays 16A 2CO 12Vac
$0.00USD
4663 in stock
Key Specifications
Status:Active
ETIM 5.0 (DIMENSIONS):EC001652
ETIM 6.0 (DIMENSIONS):EC001652
Weight (SPECIFICATIONS):0.138 kg
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Status | Active |
| ETIM 5.0 (DIMENSIONS) | EC001652 |
| ETIM 6.0 (DIMENSIONS) | EC001652 |
| Weight (SPECIFICATIONS) | 0.138 kg |
| AC/DC (ORDER/DELIVERY STATUS) | AC |
| Series (ORDER/DELIVERY STATUS) | Relays - Contax R+ |
| Standards (ORDER/DELIVERY STATUS) | NBN EN 60947-4-1, CE |
| Coil voltage (V) (ORDER/DELIVERY STATUS) | 12 Vac |
| Standard packing (ORDER/DELIVERY STATUS) | 12 |
| Contact combination (ORDER/DELIVERY STATUS) | 2CO |
| Coil power-loss - AC (ORDER/DELIVERY STATUS) | 1.8 VA |
| Coil power-loss - DC (ORDER/DELIVERY STATUS) | 2.1 W |
| Operating temperature (ORDER/DELIVERY STATUS) | -20°C / 45°C |
| Coil pick-up power (AC) (ORDER/DELIVERY STATUS) | 3.4 VA |
| Connection of the lamps (ORDER/DELIVERY STATUS) | 1.5-10 mm² |
| Rated switching capacity (A) (ORDER/DELIVERY STATUS) | 16A |
| Number of modules Drive module (ORDER/DELIVERY STATUS) | 1 |
| Switching on voltage NC contact (ORDER/DELIVERY STATUS) | <0.020 s |
| Switching on voltage NO contact (ORDER/DELIVERY STATUS) | <0.040 s |
| Coil Voltage range (in % from Un) (ORDER/DELIVERY STATUS) | 85-110% |
| Electrical life service Mechanical (ORDER/DELIVERY STATUS) | 2 x 106controls |
| Possible volt/phase Fuse rating (gL) (ORDER/DELIVERY STATUS) | 20 A |
| Switching off voltage NO or NC contact (ORDER/DELIVERY STATUS) | <0.050 s |
| Number of modules With section power contact (ORDER/DELIVERY STATUS) | 2 |
| Possible volt for non-compensated fluor-lamps (ORDER/DELIVERY STATUS) | 900 VA |
| Possible volt/phase Max volt AC-1- Contactbloc (ORDER/DELIVERY STATUS) | 8.5 kW |
| Possible volt/phase Max volt AC-3- Contatcbloc (ORDER/DELIVERY STATUS) | 1.5 kW/250V 2.2kW/400V |
| Possible volt/phase Min volt per phase (at 5V) (ORDER/DELIVERY STATUS) | 2 W |
| Possible volt for compensated fluor-lamps- Serie (ORDER/DELIVERY STATUS) | 1800 VA |
| Possible volt/phase Max volt AC-1- Operating mod (ORDER/DELIVERY STATUS) | 3 kW |
| Possible volt/phase Max volt AC-1- Max volt AC-5b (ORDER/DELIVERY STATUS) | 1.8 kW |
| Possible volt/phase Max volt AC-7b- Operating mod (ORDER/DELIVERY STATUS) | 0.9 kW |
| Possible volt for compensated fluor-lamps- Parallel (ORDER/DELIVERY STATUS) | 500 VA |
| Possible volt- sockets & incandes lamps (40 to 200W) (ORDER/DELIVERY STATUS) | 1800 W |
| Electrical life service Electrical at full voltage AC-1 (ORDER/DELIVERY STATUS) | 3 x 105controls |
