CSS 0.75-3/3

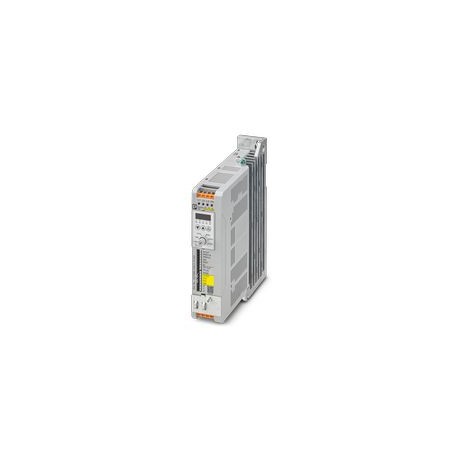

CSS 0.75-3/3 1201695 PHOENIX CONTACT Speed starter with soft start and adjustable speed for starting and rev..
$326.22USD
67 in stock
Key Specifications
:Rotary switch
Depth:190 mm
Width:45 mm
Height:210 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Rotary switch | |
| Depth | 190 mm |
| Width | 45 mm |
| Height | 210 mm |
| Marked | 3 |
| Altitude | ≤ 2000 m |
| Diameter | 5.5 mm |
| Longitude | ≤ 50 m (Motor cable length (EMC conformity category C2)) |
| Product Type | Speed Starters |
| Input voltage | 380 V AC |
| Overload Time | 30 sec (180 sec) |
| Recovery Time | 150 s (180 sec) |
| Apparent power | 1.7 kVA |
| Discharge Time | 3 min. (Intermediate Circuit Capacitors) |
| Output current | ≤ 3.75 A (180 sec) |
| Product Family | CONTACTRON |
| Connection type | Push-in connection |
| Frequency Range | 47 Hz ... 63 Hz |
| Nominal current | 2.8 A (without mains inductance) |
| Dissipated Power | 28 W (2 kHz) |
| Number of phases | 3 |
| Output Frequency | 0 Hz ... 500 Hz |
| Type of mounting | Rail mounting |
| Operation Elements | Button |
| Degree of pollution | 2 |
| Denomination Output | Relay Output |
| Input Voltage Range | 220 V AC ... 480 V AC -15% ... +10% |
| Nominal motor power | 0.75 kW |
| Crashes (in service) | 15g, 11ms |
| AWG Conductor Section | (Converted according to IEC) |
| Air Pressure (Service) | 86 kPa ... 106 kPa |
| Contact Switching Type | 1 switch |
| Protection Rating (IP) | IP20 |
| Vibration (in service) | 0.075 mm / 1g |
| Rigid conductor section | 0.2 mm² ... 6 mm² |
| Minimum Shut-Off Current | 10 mA (5 V DC) |
| Protection Rating (NEMA) | NEMA 1 |
| Standards/Specifications | IEC 61800-5-1 |
| Length to be de-insulated | 10 mm |
| Maximum Switching Voltage | 125 V AC |
| Rated Output Current (IN) | 2.5 A (4 kHz) |
| Flexible conductor section | 0.2 mm² ... 6 mm² |
| Maximum connection current | 3 A |
| Ambient Temperature (Service) | -20 °C ... 55 °C (no current derating) |
| Air Pressure (Storage/Transport) | 70 kPa ... 106 kPa |
| Permissible air humidity (service) | 90% (non-condensing) |
| Ambient Temperature (Storage/Transport) | -25 °C ... 85 °C |
| Permissible air humidity (storage/transport) | 95% (non-condensing) |
