CSS 0.37-3/3

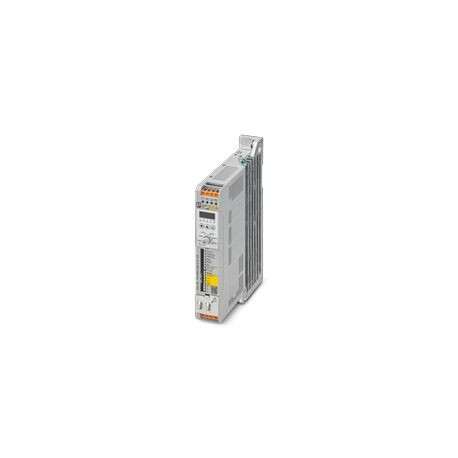

CSS 0.37-3/3 1201683 PHOENIX CONTACT Speed starter with soft start and adjustable speed for starting and rev..
$239.00USD
91 in stock
Key Specifications
:Rotary switch
Depth:175 mm
Width:35 mm
Height:210 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Rotary switch | |
| Depth | 175 mm |
| Width | 35 mm |
| Height | 210 mm |
| Length | ≤ 50 m (Motor cable length (EMC compliance category C2)) |
| Altitude | ≤ 2000 m |
| Diameter | 5.5 mm |
| Output name | Relay output |
| Product type | Speed starter |
| Input voltage | 380 V AC |
| Mounting type | DIN rail mounting |
| Overload time | 30 s (180 s) |
| Recovery time | 150 s (180 s) |
| Apparent power | 1 kVA |
| Discharge time | 3 min. (Intermediate circuit capacitors) |
| Identification | 3 |
| Output current | ≤ 2.25 A (180 s) |
| Product family | CONTACTRON |
| Frequency range | 47 Hz ... 63 Hz |
| Nominal current | 1.7 A (no line reactor) |
| Number of phases | 3 |
| Output frequency | 0 Hz ... 500 Hz |
| Pollution degree | 2 |
| Stripping length | 10 mm |
| Connection method | Push-in connection |
| Cross section AWG | (converted acc. to IEC) |
| Power dissipation | 17 W (2 kHz) |
| Shock (operation) | 15g, 11 ms |
| Operating elements | Push button |
| Input voltage range | 220 V AC ... 480 V AC -15 % ... +10 % |
| Nominal motor power | 0.37 kW |
| Standards/regulations | IEC 61800-5-1 |
| Vibration (operation) | 0,075 mm / 1g |
| Contact switching type | 1 changeover contact |
| Maximum inrush current | 3 A |
| Inrush current, minimum | 10 mA (5 V DC) |
| Air pressure (operation) | 86 kPa ... 106 kPa |
| Degree of protection (IP) | IP20 |
| Maximum switching voltage | 125 V AC |
| Conductor cross section AWG | 24 ... 10 |
| Degree of protection (NEMA) | NEMA 1 |
| Nominal output current (IN) | 1.5 A (4 kHz) |
| Conductor cross section rigid | 0.2 mm² ... 6 mm² |
| Ambient temperature (operation) | -20 °C ... 55 °C (without current derating) |
| Air pressure (storage/transport) | 70 kPa ... 106 kPa |
| Conductor cross section flexible | 0.2 mm² ... 6 mm² |
| Permissible humidity (operation) | 90 % (non-condensing) |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C |
| Permissible humidity (storage/transport) | 95 % (non-condensing) |
Product Description
Speed starter with soft start and configurable speed for starting and reversing motors up to 480 V AC and 0.37 kW, configurable motor protection, STO function up to SIL 3 / PL e, Push-in connection, t
