CSD-SL 200S YE

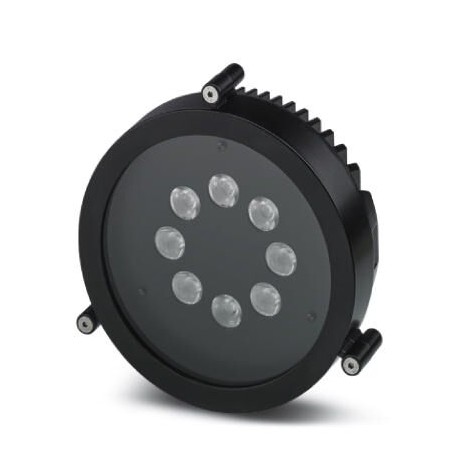

CSD-SL 200S YE 1096101 PHOENIX CONTACT Signal light, 24 V DC, yellow, communication interface, safe diagnost..
$0.00USD
3164 in stock
Key Specifications
GTIN:4055626927008
Orderkey:1096101
Packing unit:1
ETIM 5.0 (eCl@ss):EC001959
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626927008 |
| Orderkey | 1096101 |
| Packing unit | 1 |
| ETIM 5.0 (eCl@ss) | EC001959 |
| ETIM 6.0 (eCl@ss) | EC001340 |
| ETIM 7.0 (eCl@ss) | EC001340 |
| Custom tariff number | 85308000 |
| (Ambient conditions) | Safe diagnostics (up to SIL 2/PL d) in conjunction with safe modules (safety technology) Yes |
| Supply voltage (General) | 24 V DC (DC) |
| Connection method (General) | M12 connector |
| Depth (Key Commercial Data) | 66 mm |
| Design (Ambient conditions) | Operating hours counter |
| Power consumption (General) | typ. 11 W (yellow LEDs) |
| Width (Key Commercial Data) | 174 mm |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Height (Key Commercial Data) | 189 mm |
| Length (Key Commercial Data) | 174 mm |
| eCl@ss 5.1 (Classifications) | 27144000 |
| eCl@ss 6.0 (Classifications) | 27144000 |
| eCl@ss 7.0 (Classifications) | 27144051 |
| eCl@ss 8.0 (Classifications) | 27144051 |
| eCl@ss 9.0 (Classifications) | 27144051 |
| Current consumption (General) | max. 540 mA (yellow LEDs) |
| Number of positions (General) | 8 |
| Supply voltage range (General) | 19.2 V DC ... 30 V DC (DC) |
| Net weight (Ambient conditions) | 1680 g |
| Degree of protection (Dimensions) | IP65/IP67, when installed |
| Inrush current (Ambient conditions) | max. 12 A (µ-sec-pulse) |
| Protection class (Light properties) | III (IEC 61140, EN 61140, VDE 0140-1) |
| Air pressure (operation) (Dimensions) | 70 hPa ... 106 kPa (up to 3000 m above sea level) |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Mounting position (Ambient conditions) | vertical |
| Diagnostics messages (Ambient conditions) | LEDs; temperature, current, voltage, etc. Yes |
| Ambient temperature (operation) (Dimensions) | -25 °C ... 55 °C |
| Air pressure (storage/transport) (Dimensions) | 70 hPa ... 106 kPa (up to 3000 m above sea level) |
| Luminance (Power supply for module electronics) | R3 (EN 12966) |
| Color class (Power supply for module electronics) | C2 (EN 12966) |
| Light color (Power supply for module electronics) | IALA yellow, optimum |
| Can be dimmed (Power supply for module electronics) | Yes, in 256 steps |
| Ambient temperature (storage/transport) (Dimensions) | -25 °C ... 85 °C |
| Emission angle (Power supply for module electronics) | 7,5° x 7,5° |
| Number of LEDs (Power supply for module electronics) | 8 (according to IALA recommendation E200-1 and CIE 1931) |
| Luminance ratio (Power supply for module electronics) | R3 (EN 12966) |
| Luminous intensity (Power supply for module electronics) | 2800 Cd |
| Phantom light class (Power supply for module electronics) | 5 (EN 12368) |
| Source of light type (Power supply for module electronics) | LED |
| Service life, lighting appliance (Power supply for module electronics) | 50000 h |
Product Description
Signal light, 24 VDC, IALA yellow Optimum, diameter: 174 mm, protection index: IP65/IP67, Communication interface, Safe diagnostics
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
