In Stock Hot Product
CR2020008

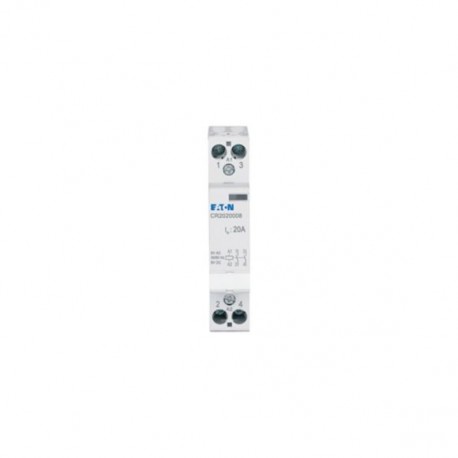

CR2020008 193908 Y7-193908 EATON ELECTRIC Installation contactor, 20A, 8V AC/DC, 2NO
$0.00USD
4884 in stock
Key Specifications
Feature Name:Feature Value
Hum-free (EF016334):No
Built-in depth (EF000218):60 mm
Slider for hand switch (EF005240):No
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Feature Name | Feature Value |
| Hum-free (EF016334) | No |
| Built-in depth (EF000218) | 60 mm |
| Slider for hand switch (EF005240) | No |
| Rated operating voltage (EF001435) | 400 V |
| Rated operation current (EF007679) | 20 A |
| With day/night function (EF021124) | No |
| Rated excitation voltage (EF008409) | 6.8 V |
| Degree of protection (IP) (EF005474) | IP20 |
| Max. load fluorescent lamp (EF004971) | 910 VA |
| Max. incandescent lamp load (EF004952) | 1950 W |
| Additional equipment possible (EF008148) | Yes |
| Voltage type (operating voltage) (EF005294) | AC/DC |
| Voltage type (excitation voltage) (EF005293) | AC/DC |
| Width in number of modular spacings (EF002950) | 1 |
| Max. load fluorescent lamp (Duo circuit) (EF004972) | 1160 VA |
| Number of contacts as normally open contact (EF008256) | 2 |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Max. load fluorescent lamp (parallel compensated) (EF004973) | 232 VA |
| Utilization category according to EN IEC 60947-4-1 (EF017125) | AC-1 |
Product Description
CR2020008
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
