CQ55/BP-3A

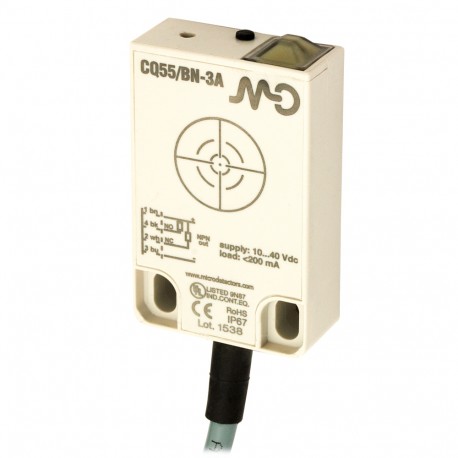

CQ55/BP-3A MICRO DETECTORS Capacitive sensor cubic Plastic DC 25mm PNP NO+NC cable 2m 90°
$0.00USD
3140 in stock
Key Specifications
Weight:150g
Mounting:Unshielded
Approvals:CEcULus
Dimensions:55x35x15mm
Supplier Information
MICRO DETECTORS
Products: 33669
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Weight | 150g |
| Mounting | Unshielded |
| Approvals | CEcULus |
| Dimensions | 55x35x15mm |
| Hysteresis | ≤ 20% |
| Connections | 2m PVC cable |
| Output type | PNP |
| Load current | ≤200mA |
| LED indicators | Yellow LED (object detected) |
| Leakage current | ≤ 10µA |
| Output Function | NO + NC |
| Repeat Accuracy | 5% |
| Housing Material | PC |
| EMC compatibility | IEC 60947-5-2 |
| Operating Voltage | 10-40Vdc |
| Max ripple content | ≤10% |
| Output voltage drop | 2,5Vmax @IL=200mA |
| Storage temperature | -40°C…+85°C |
| Switching frequency | 50Hz |
| Thermal drift of Sr | < 20% |
| Active Head Material | PC |
| Degree of protection | IP 67 (EN60529) NEMA 1,3,4,6,13 |
| Supplied Accessories | screw driver |
| Operating temperature | -25°C…+80°C (without freeze) |
| No-Load supply current | ≤10mA |
| Sensitivity adjustment | Yes |
| Nominal sensing distance | 4…25mm |
| Short-circuit protection | Yes, autoreset |
| Reverse Polarity Protection | Yes |
| Time delay before availability | ≤100ms |
| Impulsive Overvoltage Protection | Yes |
