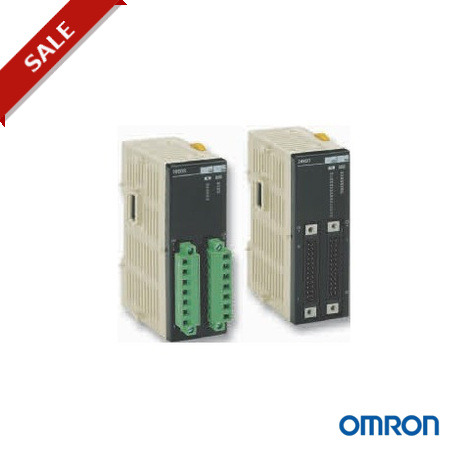

CPM2C-8EDC

CPM2C expansion unitsCompact PLCExpand the capacity of your CPM2C PLCExpansion I/O units with 8 to 32 I/O points make it possible to configure a control sys- tem with a maximumof 192 I/O pointsOrdering informationUnit Output typeI/O Connectors InputsOutputsOrder codeExpansion I/O units–1 Fujitsu (24 pt) 8–CPM2C-8EDC1 MIL (20pt) CPM2C-8EDM–1 Fujitsu (24 pt) 16–CPM2C-16EDC1 MIL (20pt) CPM2C-16EDM Relay1 Terminal block –8CPM2C-8ER Transistor output (source type)1 Fujitsu (24 pt) CPM2C-8ET1C1 MIL (20pt) CPM2C-8ET1M Transistor output (source type)1 Fujitsu (24 pt) –16CPM2C-16ET1C1 MIL (20pt) CPM2C-16ET1M Relay2 Terminal blocks 64CPM2C-10EDR Relay2 Terminal blocks 128CPM2C-20EDR Transistor output (source type)2 Fujitsu (24 pt) 168CPM2C-24EDT1C2 MIL (20pt) CPM2C-24EDT1M Transistor output (source type)2 Fujitsu (24 pt) 1616CPM2C-32EDT1C2 MIL (20pt) CPM2C-32EDT1M Analog I/O units Analog (resolution 1/6,000) 2 Terminal blocks 21CPM2C-MAD11Temperature sensor units Thermocouple input1 Terminal block 2–CPM2C-TS001Platinum resistance input1 Terminal block 2–CPM2C-TS101CompoBus/S I/O link unit –1 Terminal block I/O link of 8 input bits and 8 output bits CPM2C-SRT21RS-232C and RS422 adapter units –1 D-sub 9-pinRS-232CCPM2C-CIF01-V11 Terminal block and1 D-sub 9-pinRS-232C and RS422 CPM2C-CIF11Note:Expansion I/O units with sourcing transistor outputs are also available with sinking transistor outputs.MIL = connector according to MIL-C-83503 (compatible with DIN 41651/IEC 60603-1). For I/O Cables and Terminal Blocks, see page 7221
