In Stock Hot Product
CP2E-N20DT-D

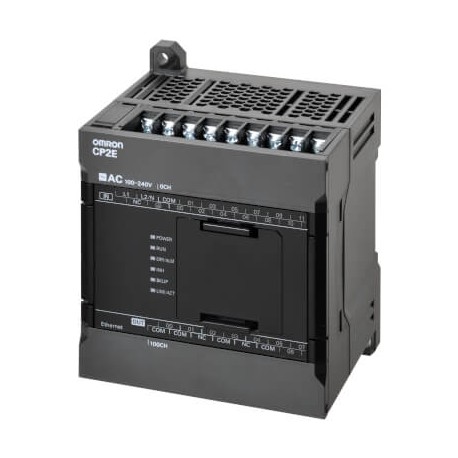

CP2E-N20DT-D CP2W0017R 689921 OMRON CP2E series compact network-type PLC, 12 inputs, 8 digital outputs NPN o..
$502.14USD
54 in stock
Key Specifications
():XS6W-6LSZH8SS300CM-B
Depth:80 mm
Width:86 mm
Height:90 mm
Supplier Information
OMRON
Products: 41472
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| () | XS6W-6LSZH8SS300CM-B |
| Depth | 80 mm |
| Width | 86 mm |
| Height | 90 mm |
| Weight | 0 g |
| Input type | PNP/NPN |
| Output type | NPN |
| Real-time clock | |
| Program capacity | 20 K steps |
| Number of USB ports | 0 |
| Supply voltage type | DC |
| Analog option boards | |
| Data memory capacity | 16 K words |
| Logic execution time | 0.23 µs |
| Communication port(s) | Ethernet TCP/IP |
| Number of RS-232 ports | 0 |
| Number of RS-485 ports | 0 |
| Communication option(s) | Serial RS-232C, Serial RS-422, Serial RS-485 |
| Max. number of PTP axes | 2 |
| Number of Ethernet ports | 1 |
| Number of digital inputs | 12 |
| Number of digital outputs | 8 |
| Battery-free memory backup | |
| Function Block programming | |
| Max. pulse output frequency | 100 kHz |
| Operating temperature range | -20-60 °C |
| Max. encoder input frequency | 100 kHz |
| Max. number of expansion units | 0 |
| Max. number of local I/O points | 20 |
| Built-in auxiliary 24 VDC output | 0 mA |
| Number of encoder input channels | 6 |
| Max. number of analog I/O channels | 4 |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
