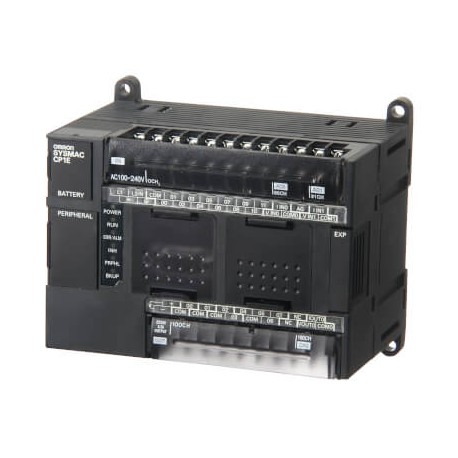

CP1E-NA20DR-A
CP1E-NA20DR-A CP1W0115E CP1ENA20DRA OMRON CPU 12/8 I/O AC Relay Outputs 2/1 Analog I/O
$0.00USD
4726 in stock
Key Specifications
():CXONE-LT01-EV4
Input type:PNP/NPN
Output type:Relay
Real-time clock:
Supplier Information
OMRON
Products: 41472
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| () | CXONE-LT01-EV4 |
| Input type | PNP/NPN |
| Output type | Relay |
| Real-time clock | |
| Program capacity | 8 K steps |
| Number of USB ports | 1 |
| Supply voltage type | AC |
| Data memory capacity | 8 K words |
| Logic execution time | 1.19 µs |
| Communication port(s) | Serial RS-232C, USB |
| Analogue option boards | |
| Number of RS-232 ports | 1 |
| Number of RS-485 ports | 0 |
| Communication option(s) | CompoBus/S Slave, Ethernet TCP/IP, Serial RS-232C, Serial RS-422, Serial RS-485 |
| Max. number of PTP axes | 0 |
| Number of Ethernet ports | 0 |
| Number of digital inputs | 12 |
| Product Depth (unpacked) | 85 mm |
| Product Width (unpacked) | 130 mm |
| Number of digital outputs | 8 |
| Product Height (unpacked) | 90 mm |
| Product Weight (unpacked) | 700 g |
| Battery-free memory backup | |
| Function Block programming | |
| Max. pulse output frequency | 0 kHz |
| Operating temperature range | 0-55 °C |
| Max. encoder input frequency | 100 kHz |
| Max. number of expansion units | 3 |
| Max. number of local I/O points | 140 |
| Built-in auxiliary 24 VDC output | 300 mA |
| Max. number of analogue I/O channels | 31 |
Product Description
PLC, 100-240 VAC supply, 12 x 24 VDC inputs, 8 x relay outputs 2 A, 2 x analog inputs, 1 x analog output, resolution 1/6000, 8K steps program + 8K wor
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
