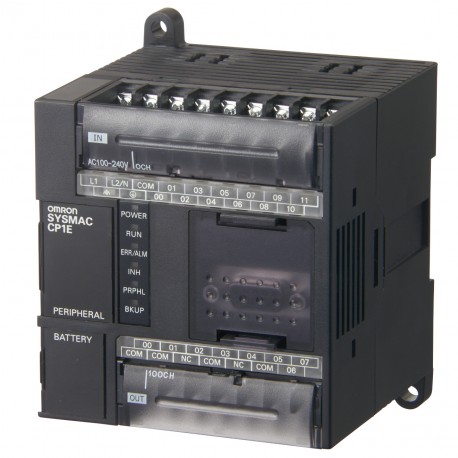

CP1E-N20DT1-D
CP1E-N20DT1-D CP1W0106F 298937 OMRON CPU 12/8 I/O DC Outputs Transistor PNP 8K Program 8K Data
$0.00USD
4200 in stock
Key Specifications
Depth:85 mm
Width:86 mm
Height:90 mm
Input type:PNP/NPN
Supplier Information
OMRON
Products: 41472
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Depth | 85 mm |
| Width | 86 mm |
| Height | 90 mm |
| Input type | PNP/NPN |
| Output type | PNP |
| Real-time clock | |
| Program capacity | 8 K steps |
| Number of USB ports | 1 |
| Supply voltage type | DC |
| Analog option boards | |
| Data memory capacity | 8 K words |
| Logic execution time | 1.19 µs |
| Communication port(s) | Serial RS-232C, USB |
| Number of RS-232 ports | 1 |
| Number of RS-485 ports | 0 |
| Communication option(s) | None |
| Max. number of PTP axes | 2 |
| Number of Ethernet ports | 0 |
| Number of digital inputs | 12 |
| Number of digital outputs | 8 |
| Battery-free memory backup | |
| Function Block programming | |
| Max. pulse output frequency | 100 kHz |
| Operating temperature range | 0-55 °C |
| Max. encoder input frequency | 100 kHz |
| Max. number of expansion units | 0 |
| Max. number of local I/O points | 20 |
| Built-in auxiliary 24 VDC output | 0 mA |
| Max. number of analog I/O channels | 0 |
Product Description
PLC, 24 VDC supply, 12 x 24 VDC inputs, 8 x PNP outputs 0.3 A, 8K steps program + 8K words data memory, RS-232C port
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
