In Stock Hot Product
COMBI 407/SDK5/S
COMBI 407/SDK5/S 10105603 WISKA Conex box. + membrane or inlet with M20/M25 thread, + Push In strip, light g..
$0.00USD
3014 in stock
Key Specifications
Type (Features):COMBI 407/SDK5 BK
Fixing (Features):4 internal openings
Voltage (Features):690 V
Material (Features):Polypropylene
Supplier Information
WISKA
Products: 2869
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Type (Features) | COMBI 407/SDK5 BK |
| Fixing (Features) | 4 internal openings |
| Voltage (Features) | 690 V |
| Material (Features) | Polypropylene |
| Packing unit (Features) | 5 |
| Product Color (Features) | RAL 9005 |
| Glow wire test (Features) | 750 °C |
| Temp. range max (Features) | 100 °C |
| Temp. range min (Features) | -30 °C |
| Terminals/poles (Features) | 5 x 2,5 mm² |
| WISKA-Order no. (Features) | 10105603 |
| Protection class (Features) | IP66 / IP67 |
| ETIM-Classification (Features) | EC002600 |
| Rated cross section (Features) | 4 mm² |
| Type of cable gland (Features) | M 20 x 1,5, M 25 x 1,5 |
| Using for cable gland (Features) | |
| Ø cable diameter max (Features) | 12 mm |
| Ø cable diameter min (Features) | 3 mm |
| Material sealing gasket (Features) | TPE |
| External dimensions LxWxH (Features) | 95 x 95 x 60mm |
| Rated current / A (Terminal) (Features) | 24 A |
| Temperatures during install. (Features) | -5 °C - 60 °C |
Product Description

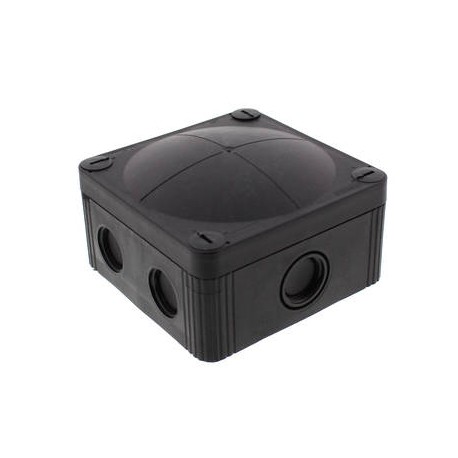

Junction box 95x95x60mm, polypropylene, RAL 9005, with terminal block
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
