CLSS11D

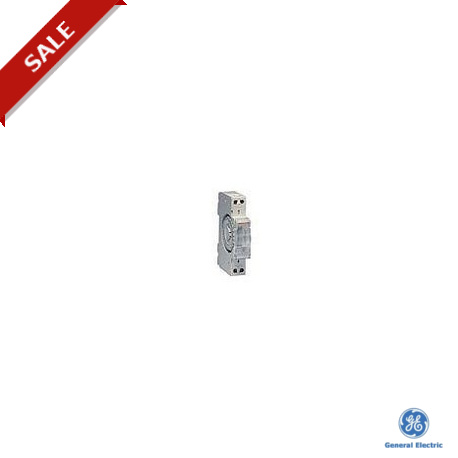

CLSS11D 666111 GENERAL ELECTRIC Analogue timer 1 mod 1 chan day no res
$0.00USD
4707 in stock
Key Specifications
Type:Day programmable (1x24x2)
AC/DC:AC
Range:Analogue time switch - Classic
Screws:Pozidriv 1
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Day programmable (1x24x2) |
| AC/DC | AC |
| Range | Analogue time switch - Classic |
| Screws | Pozidriv 1 |
| Series | Classic |
| Contact | NO contact |
| Standards | CE, EN-60730-1, EN-60730-2-7, VDE 0633 |
| Product type | Analogue time switches |
| Nominal current | 16A/250Vac |
| Synchronisation | NET |
| Clockwork Screws | Pozidriv 1 |
| Standard packing | 1 |
| Number of modules | 1 |
| Operating voltage | 220 - 240 Vac 50Hz |
| Clockwork Accuracy | Net-synchronized |
| Clockwork Sealable | Yes |
| Number of channels | 1NO |
| On/Off/Auto switch | Not off |
| Control system Screws | Pozidriv 1 |
| ETIM 5.0 (DIMENSIONS) | EC002304 |
| ETIM 6.0 (DIMENSIONS) | EC002304 |
| Clockwork Term cap max | 1x6 mm² or 2x2.5 mm² |
| Clockwork Term cap min | 1x0.5 mm² |
| Shortest switching time | 30 min |
| Weight (SPECIFICATIONS) | 0.11 kg |
| Clockwork Operating voltage | 220 - 240Vac 50Hz |
| Terminal capacity max (mm²) | 1x6 mm² / 2x2.5 mm² |
| Terminal capacity min (mm²) | 1x0.5 mm² |
| Clockwork Consumption at 230 Vac | 1 VA |
| Shortest switching time day-program | 30 min |
| Clockwork Operating temp range (°C) | -20 - +55°C |
| Control system Control voltage range | 220 - 240Vca |
| Control system Power consumption (W) | 1 VA |
| Shortest switching time week-program | 3 h |
| Rated switching capacity- inductive load | 4A/250Vac |
| Rated switching capacity- resistive load | 16A/250Vac |
| Rated switching capacity- incandesc lamps (W) | 1000 W |
