CLIXX 16/B

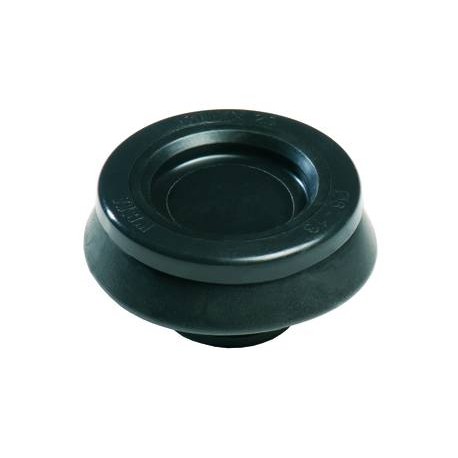

CLIXX 16/B 10101930 WISKA Wall-wall anti-traction membrane, black RAL 9005, range from 4.0mm to 10.0mm, DN16
$0.00USD
3881 in stock
Key Specifications
Type (Features):CLIXX® 16
Material (Features):Polypropylene
Ø Drilling (Features):16,5 mm - 16,7 mm
Packing unit (Features):50
Supplier Information
WISKA
Products: 2869
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Type (Features) | CLIXX® 16 |
| Material (Features) | Polypropylene |
| Ø Drilling (Features) | 16,5 mm - 16,7 mm |
| Packing unit (Features) | 50 |
| Product Color (Features) | RAL 9005 |
| Glow wire test (Features) | 750 °C |
| Temp. range max (Features) | 65 °C |
| Temp. range min (Features) | -40 °C |
| Total length TL (Features) | 15 mm |
| Protection class (Features) | IP66 / IP67 |
| Wall thickness S (Features) | 0,8 mm - 3,5 mm |
| Material membrane (Features) | TPE |
| Order no. RAL 9005 (Features) | 10101930 |
| Collar diameter (E) (Features) | 23 mm - 28 mm |
| ETIM-Classification (Features) | EC000451 |
| Ø cable diameter max (Features) | 10 mm |
| Ø cable diameter min (Features) | 4,5 mm |
| Ø Connection thread D (Features) | 16 |
| Length screw-in thread L (Features) | 7,3 mm |
Product Description
Membrane cable entrie with strain relief, plastic, RAL 9005, M16
